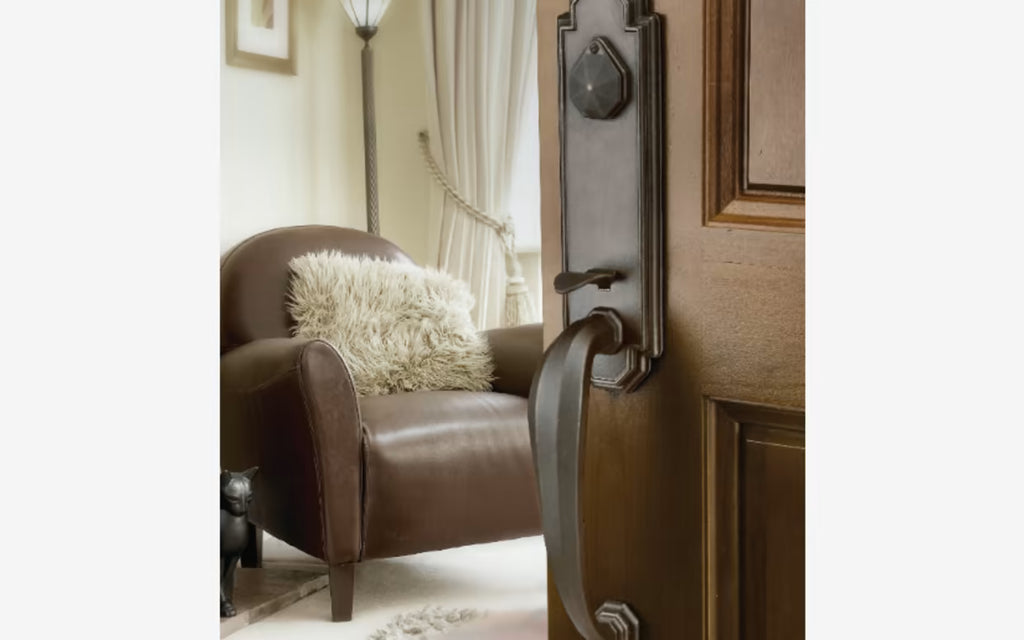

The EMTEK Octagon Mortise Entry Set from the Tuscany Bronze Collection blends old-world craftsmanship with the strength of heavy-duty mortise construction. Individually cast in solid bronze, each piece showcases rich texture and natural variation for authentic character. The distinctive octagonal detailing adds timeless architectural appeal. Built on a robust mortise lock platform, it features a deadlocking latch bolt and forged deadbolt for smooth, secure operation.
Sold complete with the mortise lock body, latch, and strike plate, and available in keyed functions such as F13 and F20, it delivers lasting durability and classic Tuscan style for exterior doors.
Sold as complete set. Includes latch and strike plate.
Can be ordered with any Tuscany Bronze Knob or Lever for the inside trim.
• Standard door thickness" 1¾”. Specify if thicker.
• Locks for in-swing doors are standard. For out-swing doors, please specify.
Specs:
Standard Door Thickness: 1 ¾"
Standard Components:
- 1-¾" Threaded Cylinder
- 2" Long Spindle
- 2-¼" Top Rosette Screw
- 1-½" Bottom Rosette Screw
- Thumbpress
- Strikeplate
Extended Door Thickness: 1 7/8" – 2 ¼"
Extended Components:
- 1-½" Threaded Cylinder
- 2" Long Spindle
- 2-¼" Top Rosette Screw
- 2" Bottom Rosette Screw
- Thumbpress
- Strikeplate
Extended Door Thickness: 2 3/8" – 2 ¾"
Extended Components:
- 1-¾" Threaded Cylinder
- 2 -¼" Long Spindle
- 2-½" Top Rosette Screw
- 2" Bottom Rosette Screw
- Extended Thumbpress
- Extended Strikeplate
Dimensions
Exterior Dimensions
- Overall Height: 17-½"
- Upper Backplate Height: 10-½"
- Upper Backplate Width: 3”
- Lower Backplate Diameter: 1-½"
Interior Dimensions
- Height: 10"
- Width: 3”
- Thumbturn Height (Top): 3-7/8”
- Knob/Lever Height (Bottom): 4-3/8”
Additional Dimensions:
• Exterior Projection- 3-1/16”
• Interior Projection Depends on Handle Style
• Overall Grip thickness: 2-1/8”
• Clearance between door & grip is 1-9/16”
• Plates thickness: 1⁄2"
Same dimensions for Dummy function
