EMTEK Hercules Smooth Monolithic Tubular Entry Set

EMTEK Hercules Smooth Monolithic Tubular Entry Set

$457.60
Handleset Function

Fits standard door thickness of 1-3/4”; specify if thicker. BOTH backsets included: 2-3/8" & 2-3/4"

Lever / Knob
Handling
Finish / Color
SKU:

For bulk or custom orders, contact our sales team.

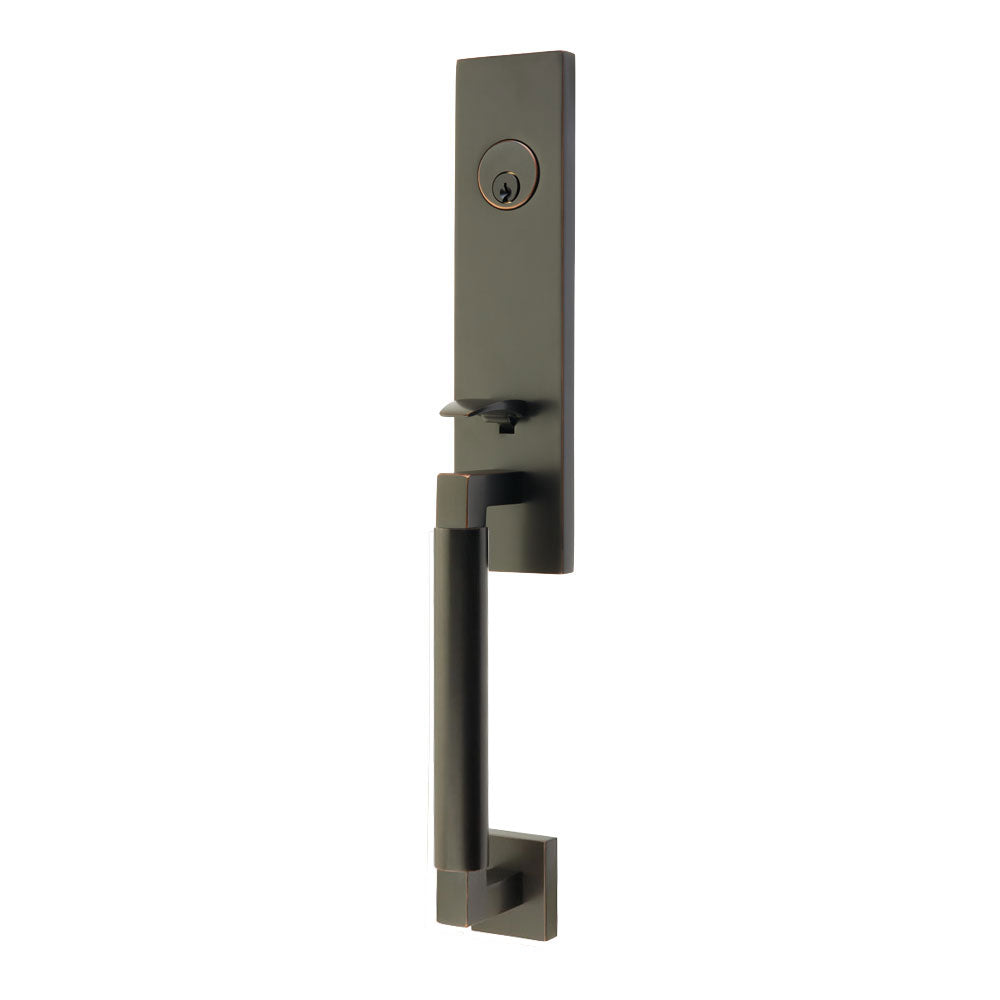

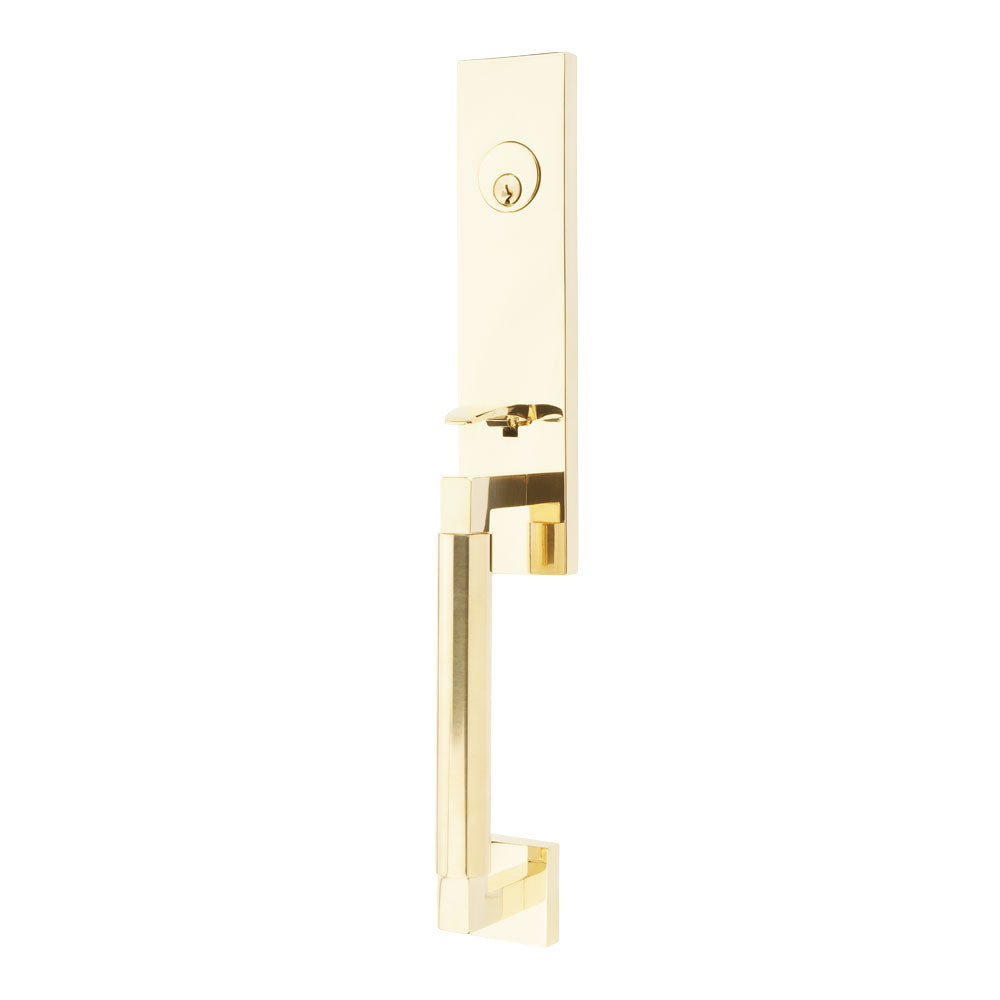

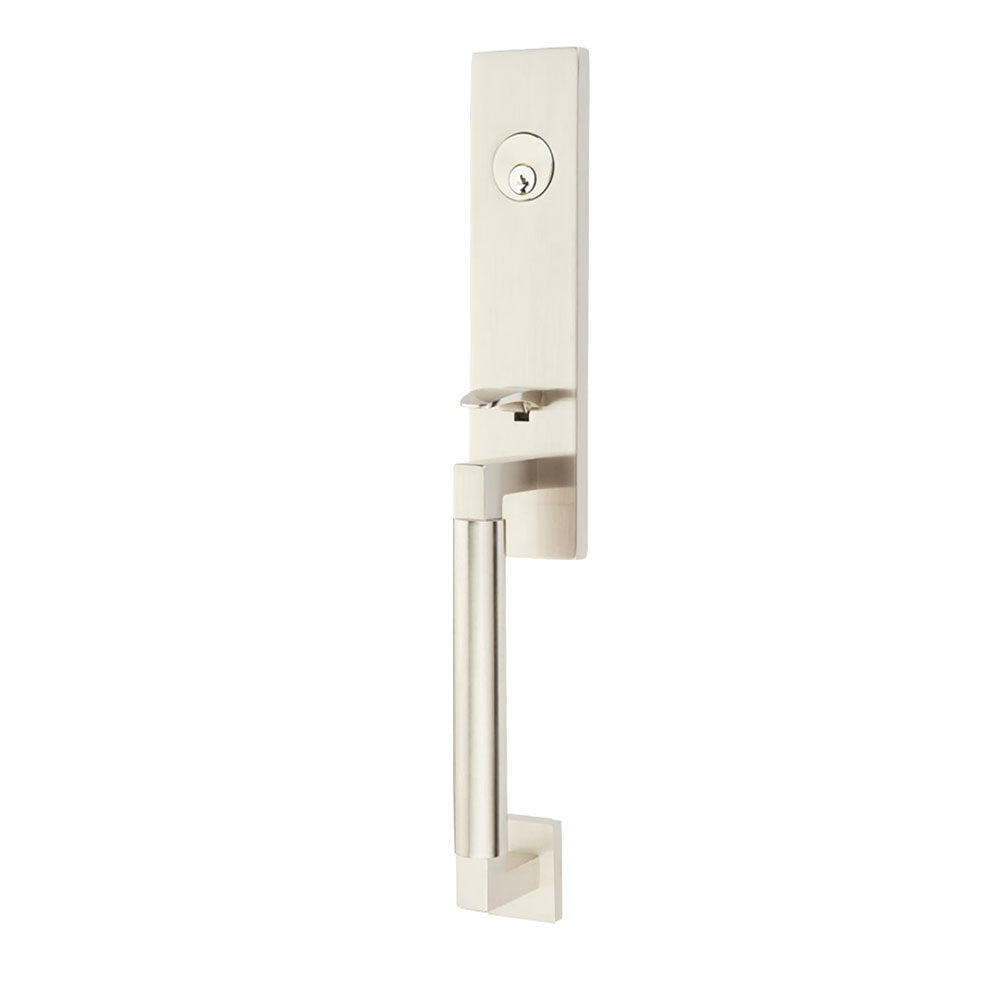

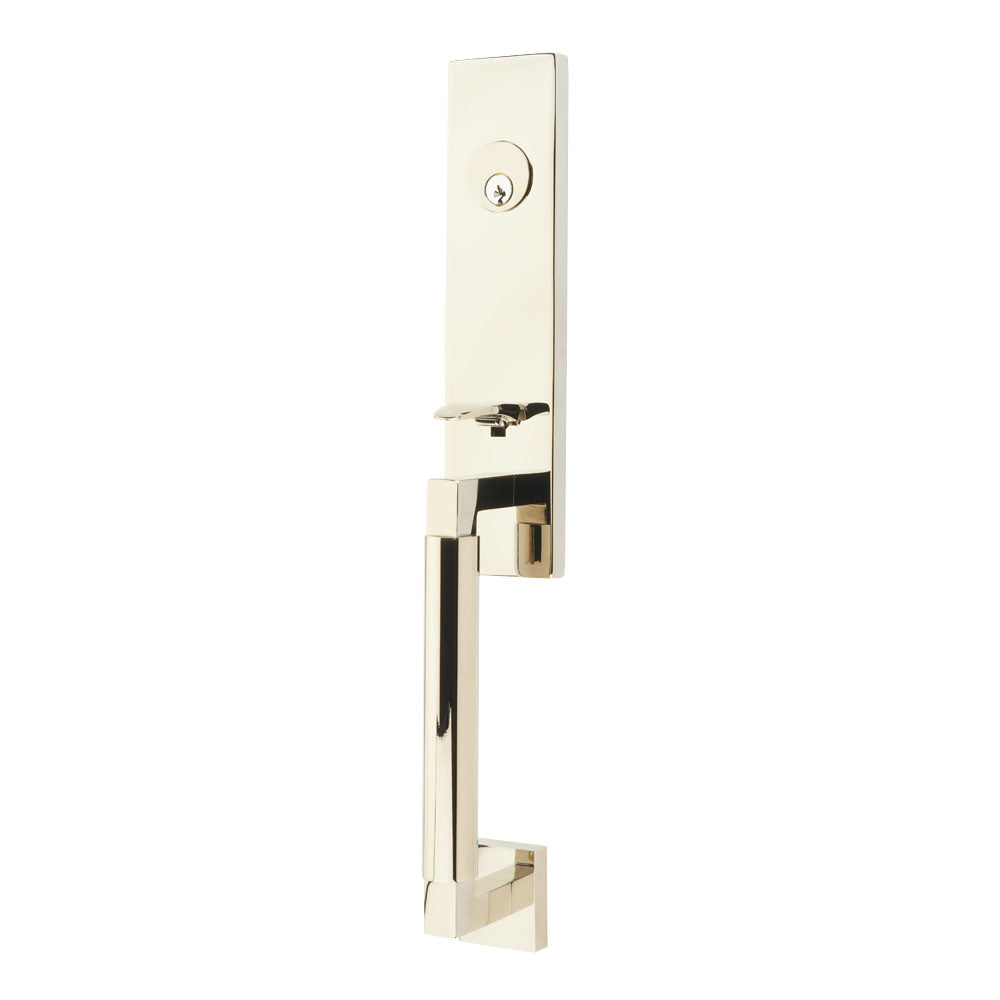

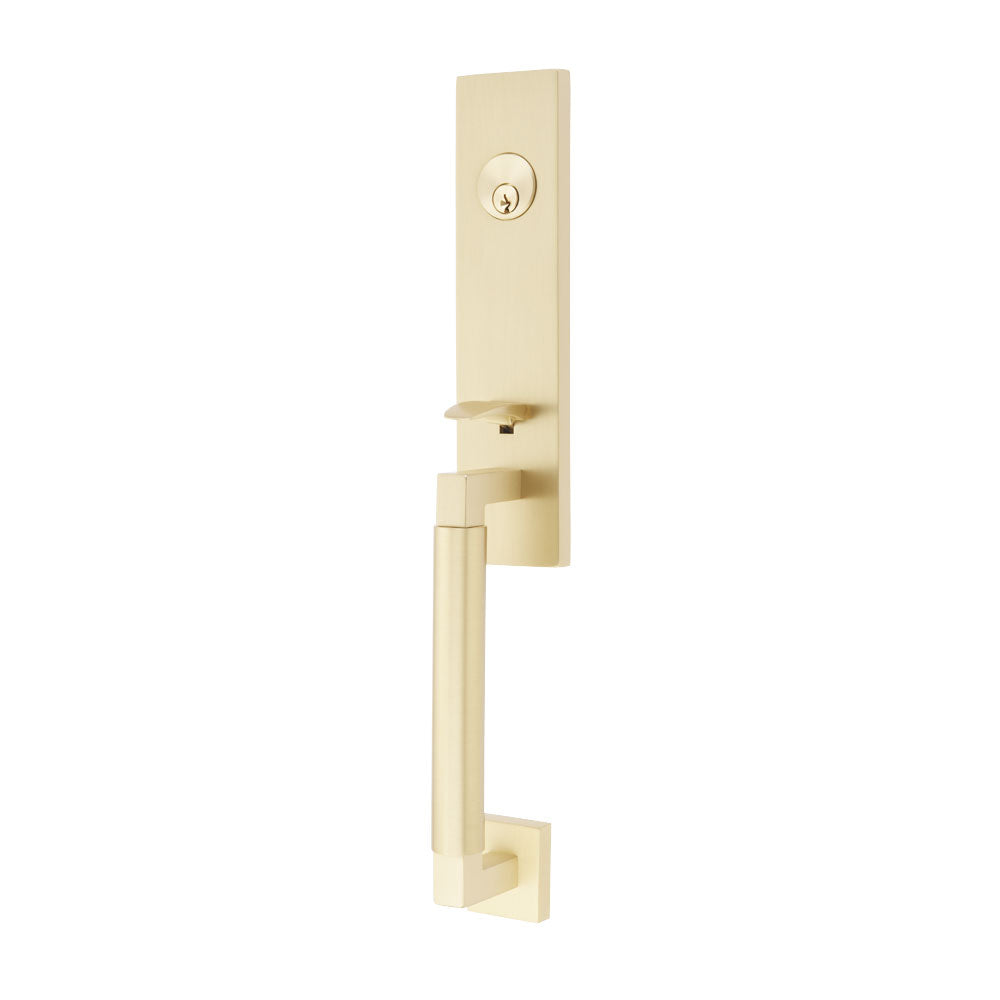

The EMTEK Hercules Smooth Full‑Length Tubular Entry Set presents a striking combination of architectural clarity and minimalist style. Its modern rectangular backplate delivers a clean, streamlined foundation, while the smooth bar grip offers a refined, tactile ‑ yet understated ‑ presence. Designed as a full set, it includes latch and strike plate and can be paired with any EMTEK brass knob or lever for the interior trim. Available in multiple finishes and grip options, this entry set brings both bold structure and elegant simplicity to your front door

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

EMPowered™ 2

The "EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™ 2 fits door thickness up to 2-¼”.

Fits standard door thickness of 1-3/4”; specify if thicker. BOTH backsets included: 2-3/8" & 2-3/4"



Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever used on inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.



Dimensions

  • Overall Height: 17-½"
  • Overall Width: 2-½”
  • Backplate Height: 10 -¼"
  • Backplate Width: 2-½"

Interior Dimensions

  • Height: 10-5/16"
  • Width: 2-½”
  • Thumb turn Height (from top): 2-5/8"
  • Knob/Lever (from bottom): 2-3/8"

Additional Dimensions

  • Exterior Projection: 2-¾"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1”
  • Clearance between door and grips: 1 – 1-¾"
  • Plate Thickness: ½"

Same Dimensions for the Double Cylinder and Dummy Function

Standard Components for Single Cylinder:

  • 1-1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  •  2-¼”  Deadbolt Mounting Screws

Standard Components for Double Cylinder:

  •  1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Door Thickness Specifications:

Standard Door Thickness: 1-3⁄4”- 2-1⁄8”

Please specify Extended Door Thickness:

  • Tier 1: 2-1⁄4”- 2-5⁄8”.
  • Tier 2: 2-5⁄8”- 2-7⁄8”.





The EMTEK Hercules Smooth Full‑Length Tubular Entry Set presents a striking combination of architectural clarity and minimalist style. Its modern rectangular backplate delivers a clean, streamlined foundation, while the smooth bar grip offers a refined, tactile ‑ yet understated ‑ presence. Designed as a full set, it includes latch and strike plate and can be paired with any EMTEK brass knob or lever for the interior trim. Available in multiple finishes and grip options, this entry set brings both bold structure and elegant simplicity to your front door

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

EMPowered™ 2

The "EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™ 2 fits door thickness up to 2-¼”.

Fits standard door thickness of 1-3/4”; specify if thicker. BOTH backsets included: 2-3/8" & 2-3/4"



Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever used on inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.



Dimensions

  • Overall Height: 17-½"
  • Overall Width: 2-½”
  • Backplate Height: 10 -¼"
  • Backplate Width: 2-½"

Interior Dimensions

  • Height: 10-5/16"
  • Width: 2-½”
  • Thumb turn Height (from top): 2-5/8"
  • Knob/Lever (from bottom): 2-3/8"

Additional Dimensions

  • Exterior Projection: 2-¾"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1”
  • Clearance between door and grips: 1 – 1-¾"
  • Plate Thickness: ½"

Same Dimensions for the Double Cylinder and Dummy Function

Standard Components for Single Cylinder:

  • 1-1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  •  2-¼”  Deadbolt Mounting Screws

Standard Components for Double Cylinder:

  •  1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Door Thickness Specifications:

Standard Door Thickness: 1-3⁄4”- 2-1⁄8”

Please specify Extended Door Thickness:

  • Tier 1: 2-1⁄4”- 2-5⁄8”.
  • Tier 2: 2-5⁄8”- 2-7⁄8”.
