EMTEK Hercules Knurled Monolithic Mortise Entry Set

EMTEK Hercules Knurled Monolithic Mortise Entry Set

$864.80
Handleset Function

Note: Fits standard door thickness of 1-3/4”; specify if thicker. Locks for in-swing doors are standard. For out-swing doors, please specify.

Lever / Knob
Function
Handling
Finish / Color
Backsets
SKU:

For bulk or custom orders, contact our sales team.

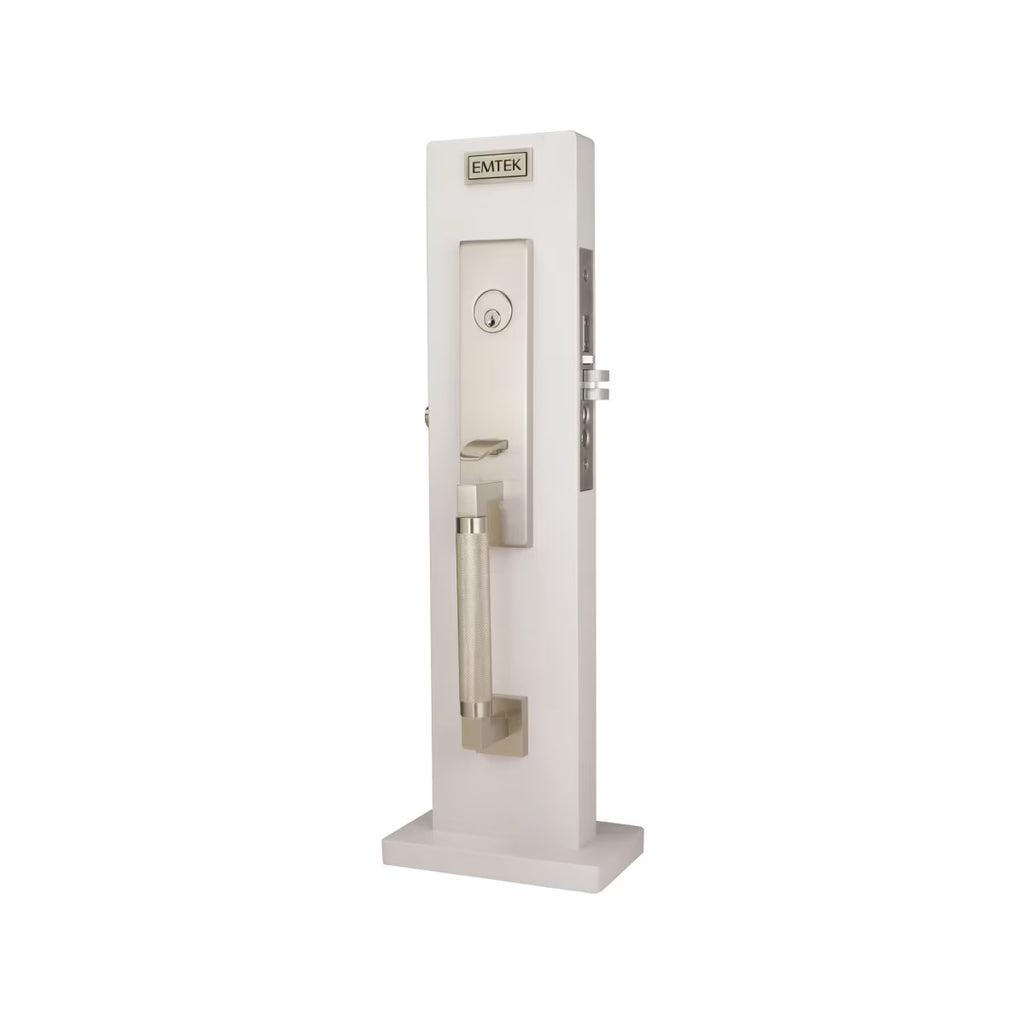

The EMTEK Knurled Hercules Monolithic Mortise Entry Set features the same bold, Bauhaus-inspired rectangular trim as the smooth version, enhanced with a precision knurled grip for added texture and visual interest. The detailed knurling provides a modern industrial aesthetic while offering an improved tactile feel. Built on EMTEK’s heavy-duty mortise platform, it delivers superior strength, stability, and long-lasting performance.

Sold as a complete set, it includes the mortise lock body, latch, and strike plate, and can be paired with any compatible brass knob or lever for the interior trim. Available in keyed functions such as F13 (standard keyed entry) and F20, and offered in a range of contemporary brass finishes, the Knurled Hercules combines elevated design with dependable exterior door security.



Sold as complete set. Includes latch and strike plate

Can be ordered with any Brass Knob or Lever for the inside trim.



• Standard door thickness" 1¾”. Specify if thicker.
• Locks for in-swing doors are standard. For out-swing doors, please specify.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.



Specs:

Standard Door Thickness: 1 3/4"

Standard Components:

  • 1 3/4" Threaded Cylinder
  • 2" Long Spindle
  • 2 1/4" Top Rosette Screw
  • 1 1/2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8" – 2 1/4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1/4" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3/8" – 2 3/4"

Extended Components:

  • 1 3/4" Threaded Cylinder
  • 2 1/4" Long Spindle
  • 2 1/2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate





Dimensions

Exterior Dimensions

  • Overall Height: 17-5/8"
  • Upper Backplate Height:10-¼"
  • Upper Backplate Width: 2-½"
  • Bottom Backplate Height: 2”
  • Bottom Backplate Width: 1-¾"



Interior Dimensions

  • Height: 10-¼"
  • Width: 2-½"
  • Thumbturn Height (Top): 3-9/16”
  • Knob/Lever Height (Bottom): 4-7/16”



Additional Dimensions:

• Exterior Projection- 2 1⁄2”

• Interior Projection Depends on Handle Style

• Overall Grip thickness: 1"

• Clearance between door & grip is 1 1⁄2” - 1 7/8"

• Plates thickness: 1⁄2"

Same dimensions for dummy function
