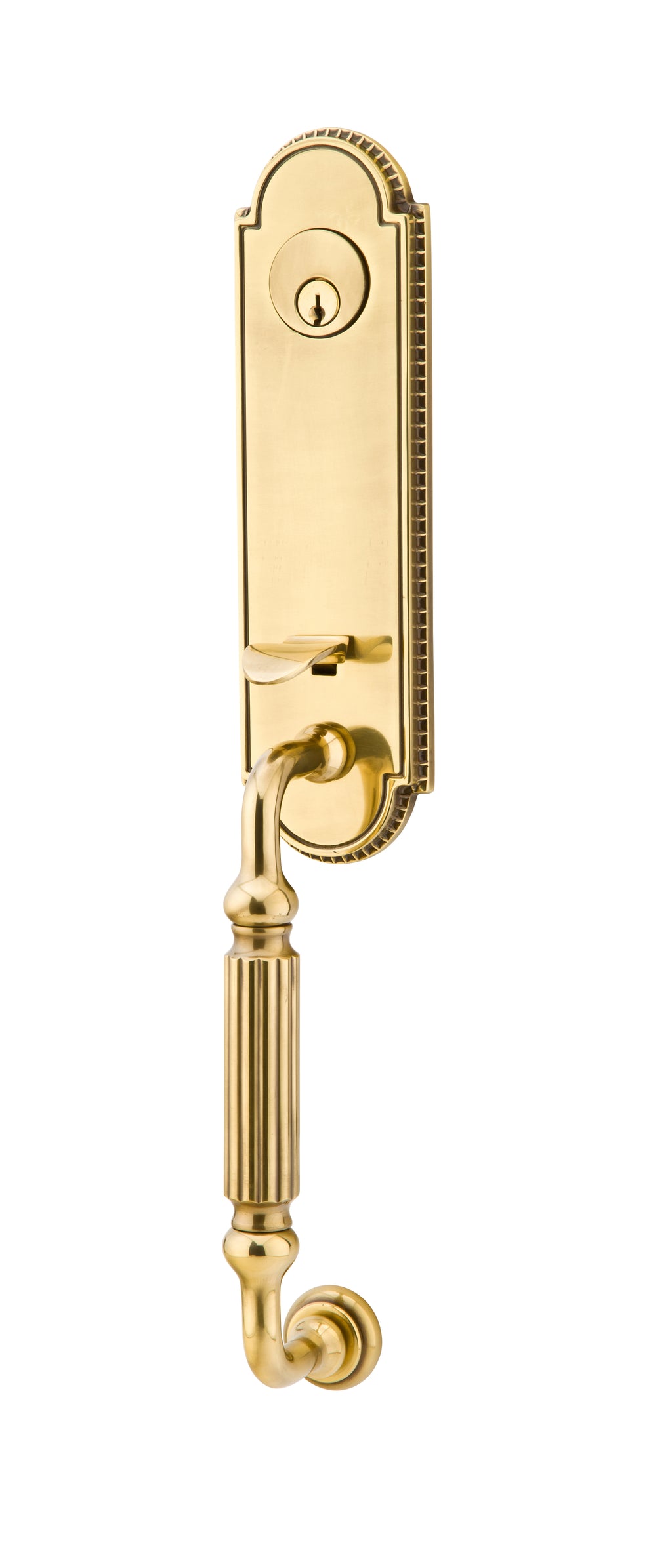

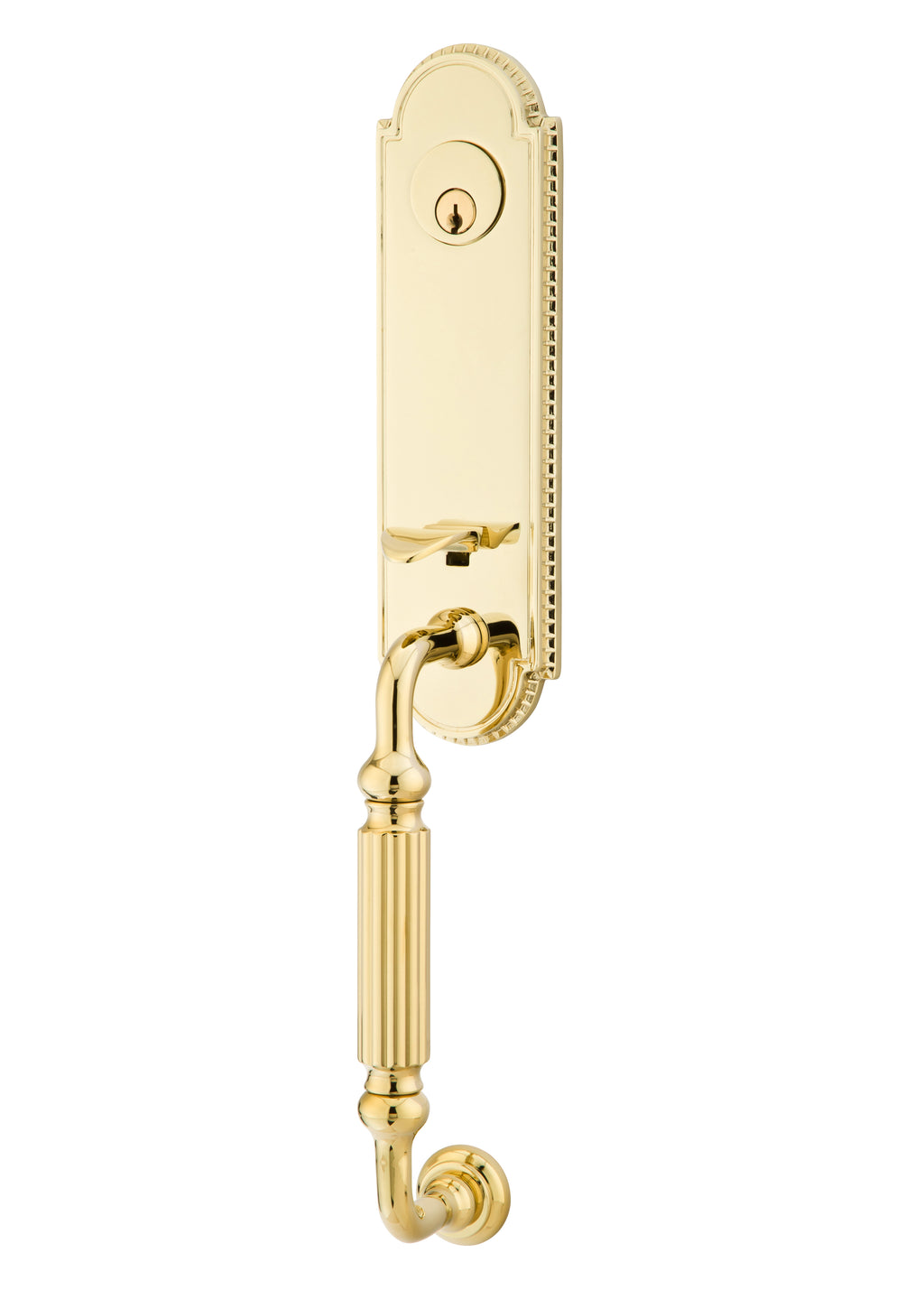

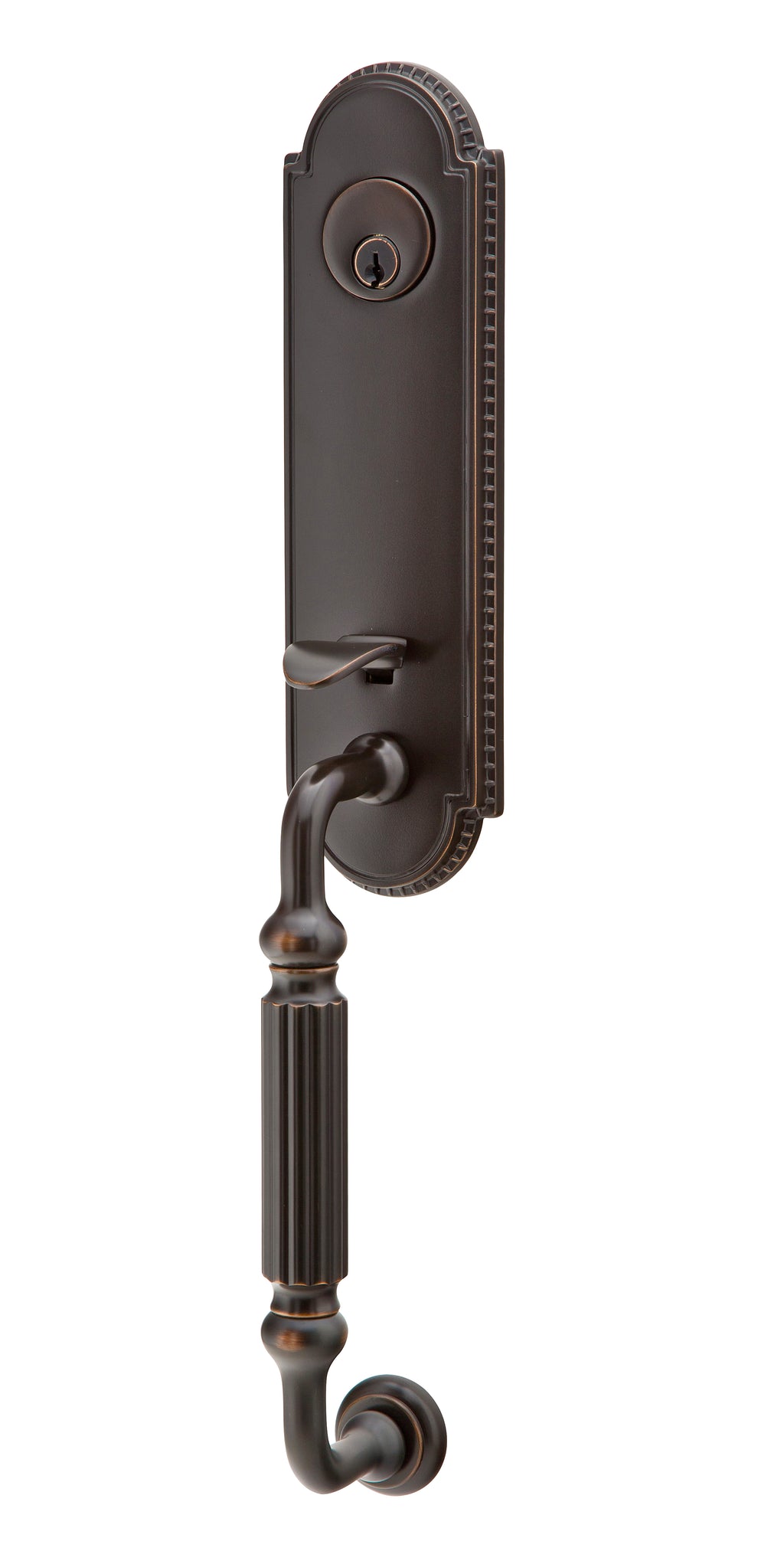

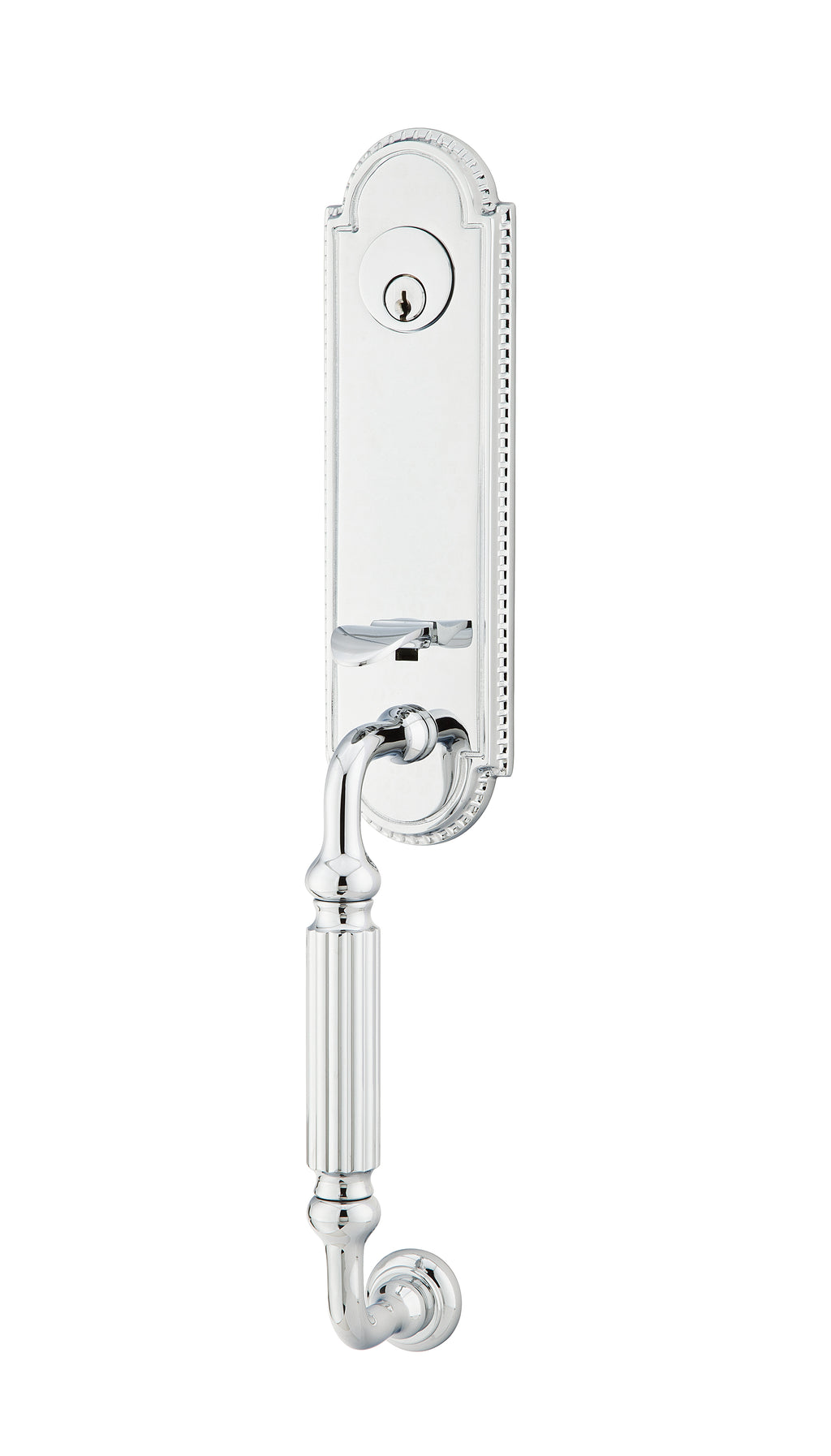

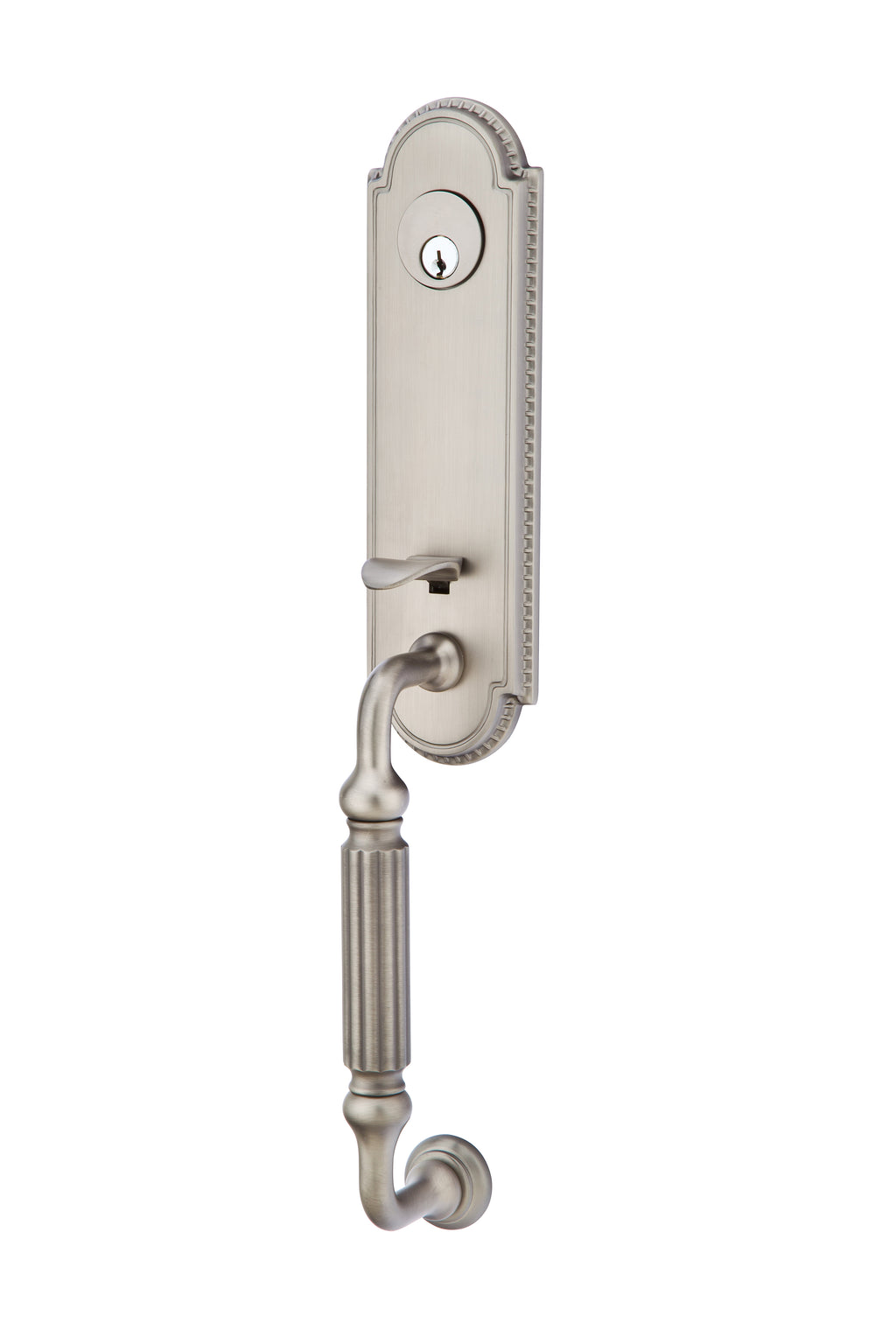

EMTEK Orleans Tubular Entry Set

Skip to product information
EMTEK Orleans Tubular Entry Set

EMTEK Orleans Tubular Entry Set

$457.60
Handleset Function

Fits standard door thickness of 1-3/4”; specify if thicker. BOTH backsets included: 2-3/8" & 2-3/4"

Lever / Knob
Handling
Finish / Color
SKU:

For bulk or custom orders, contact our sales team.

The EMTEK Orleans Entry Set brings classic elegance and refined architectural detail to any front doorway. Featuring a distinctive curved handle and graceful, traditional styling, the Orleans offers a warm, inviting presence that enhances both historic and transitional homes. Its thoughtfully shaped grip provides a comfortable, substantial feel, while the beautifully proportioned backplate adds a touch of timeless sophistication. Engineered as a complete locking solution, the Orleans Entry Set includes all necessary installation hardware and pairs seamlessly with EMTEK’s full selection of knobs and levers for interior trim. Available in a curated range of premium finishes, this entry set delivers enduring craftsmanship, distinguished character, and a stately first impression for any home.

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

Fits standard door thickness of 1-3/4”; specify if thicker.

BOTH backsets included: 2-3/8" & 2-3/4"

EMPowered™ 2

The EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™2 fits door thickness up to 2¼”.

Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever used on inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.



Dimensions

Exterior Dimensions

  • Overall Height: 17-1/4"
  • Upper Backplate Height: 9-3/4"
  • Upper Backplate Width: 2-13/16"
  • Deadbolt Height: 2-1/4"
  • Lower Backplate Height: 1-7/16"
  • Lower Backplate Width: 1-7/16"

Interior Dimensions

  • Height: 9-3/4"
  • Width: 2-13/16"
  • Thumbprint Height (from top): 2-3/8"
  • Knob Lever Height (from bottom): 2-1/8"



Additional Dimensions

  • Exterior Projection: 3"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1”
  • Clearance between door and grips: 1-½"
  • Plate Thickness: ½"



Same Dimensions for the Single Cylinder, Double Cylinder and Dummy Function



Standard Components for Single Cylinder:

  • 1 1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2 1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  • Deadbolt Strike Plate

Standard Components for Double Cylinder:

  •  1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Door Thickness Specifications:

Standard Door Thickness: 1-3⁄4”- 2-1⁄8”

Please specify Extended Door Thickness:

  • Tier 1: 2-1⁄4”- 2-5⁄8”.
  • Tier 2: 2-5⁄8”- 2-7⁄8”.





The EMTEK Orleans Entry Set brings classic elegance and refined architectural detail to any front doorway. Featuring a distinctive curved handle and graceful, traditional styling, the Orleans offers a warm, inviting presence that enhances both historic and transitional homes. Its thoughtfully shaped grip provides a comfortable, substantial feel, while the beautifully proportioned backplate adds a touch of timeless sophistication. Engineered as a complete locking solution, the Orleans Entry Set includes all necessary installation hardware and pairs seamlessly with EMTEK’s full selection of knobs and levers for interior trim. Available in a curated range of premium finishes, this entry set delivers enduring craftsmanship, distinguished character, and a stately first impression for any home.

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

Fits standard door thickness of 1-3/4”; specify if thicker.

BOTH backsets included: 2-3/8" & 2-3/4"

EMPowered™ 2

The EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™2 fits door thickness up to 2¼”.

Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever used on inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.



Dimensions

Exterior Dimensions

  • Overall Height: 17-1/4"
  • Upper Backplate Height: 9-3/4"
  • Upper Backplate Width: 2-13/16"
  • Deadbolt Height: 2-1/4"
  • Lower Backplate Height: 1-7/16"
  • Lower Backplate Width: 1-7/16"

Interior Dimensions

  • Height: 9-3/4"
  • Width: 2-13/16"
  • Thumbprint Height (from top): 2-3/8"
  • Knob Lever Height (from bottom): 2-1/8"



Additional Dimensions

  • Exterior Projection: 3"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1”
  • Clearance between door and grips: 1-½"
  • Plate Thickness: ½"



Same Dimensions for the Single Cylinder, Double Cylinder and Dummy Function



Standard Components for Single Cylinder:

  • 1 1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2 1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  • Deadbolt Strike Plate

Standard Components for Double Cylinder:

  •  1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Door Thickness Specifications:

Standard Door Thickness: 1-3⁄4”- 2-1⁄8”

Please specify Extended Door Thickness:

  • Tier 1: 2-1⁄4”- 2-5⁄8”.
  • Tier 2: 2-5⁄8”- 2-7⁄8”.
