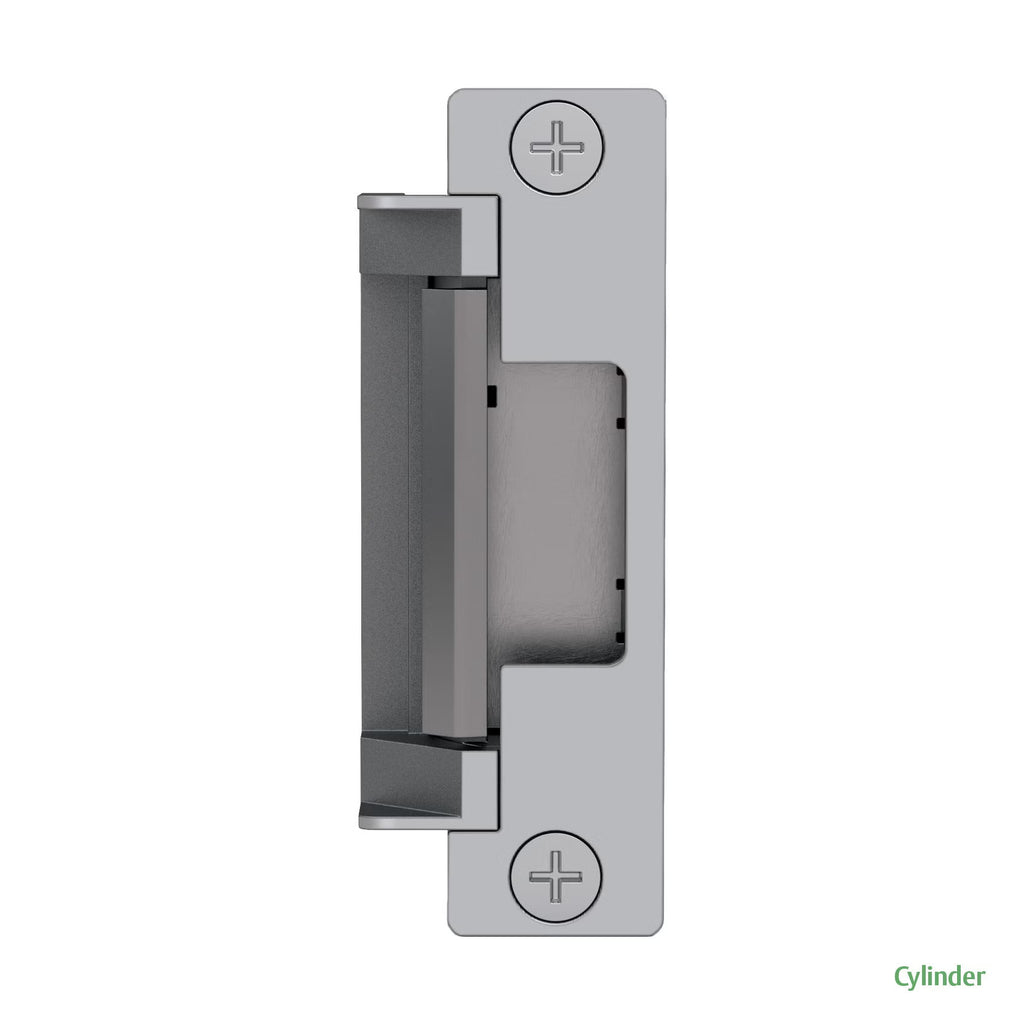

HES 4500C Series Electric Strike Complete Pac

$473.72

For bulk or custom orders, contact our sales team.

Need Help?

The 4500C series electric strike is designed for installation in 2" UL 10C fire rated frames with 1/2" drywall penetration. It features a low profile 1-3/8" depth, heavy-duty stainless steel construction. The strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.

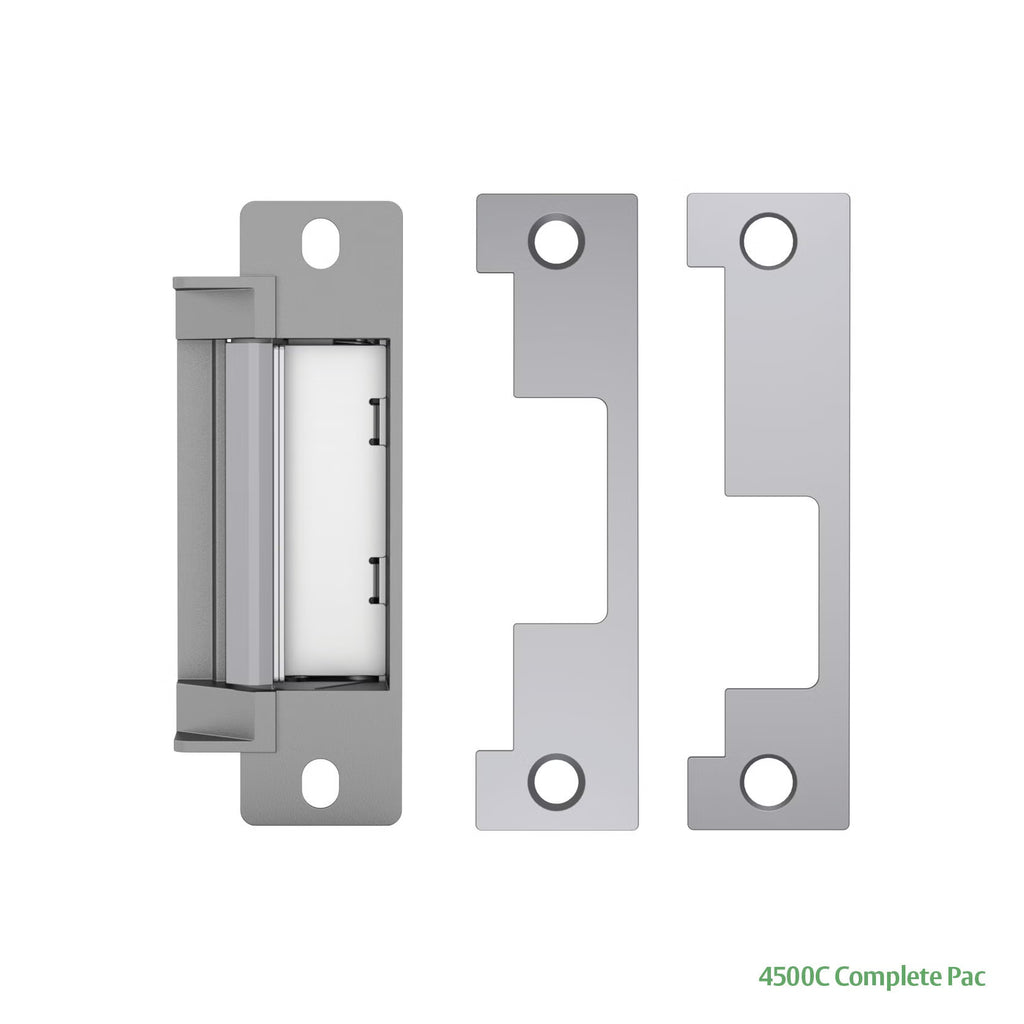

Complete Pack - includes 1LB faceplate kit for Latchbolts

(Kit includes 1J, 1K, 1KD and 1KM faceplates)

COLOR: Satin stainless steel (630)

The HES 1500 Series Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design.

Windstorm Resistant
Burglary Rated
Fire-Rated
Grade 1
Outdoor Rated
SecuriCare Warranty
PoE Friendly
Fail Secure/Fail Safe
Dual Voltage

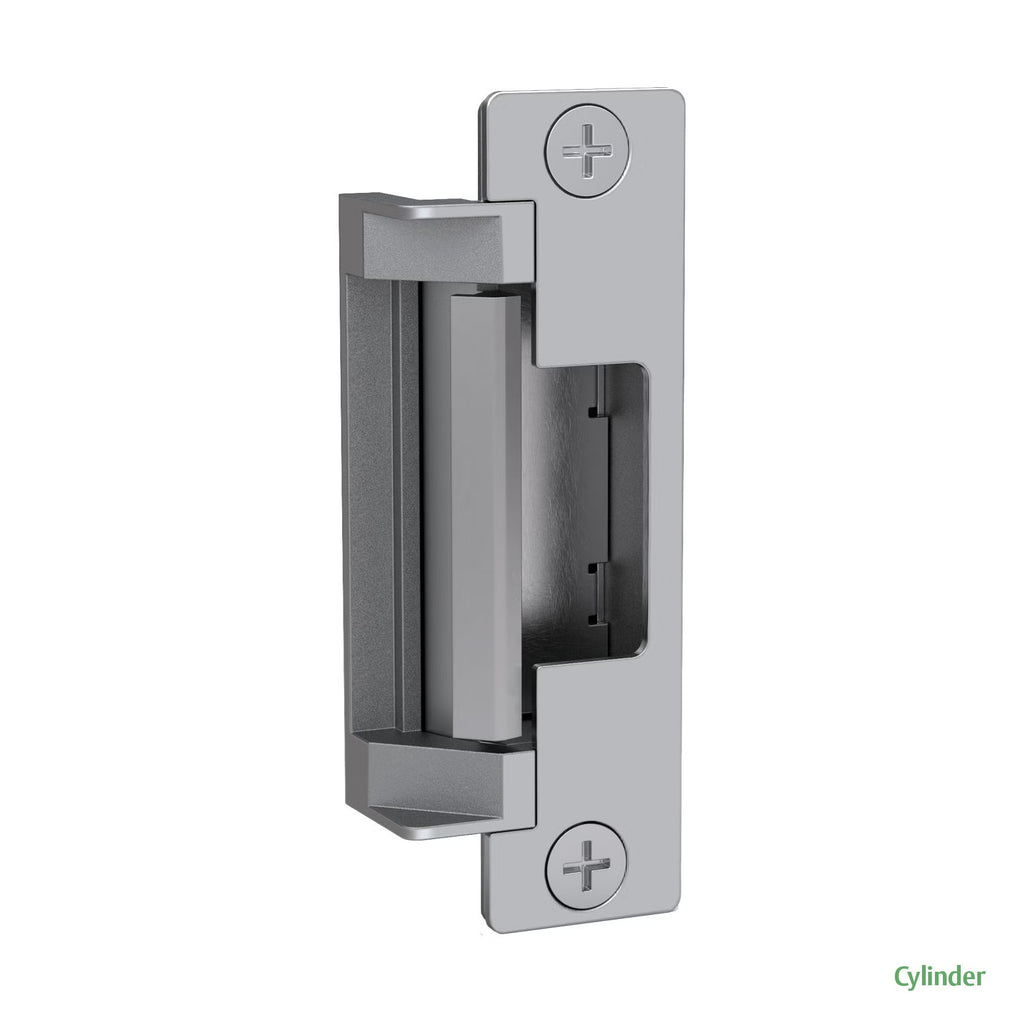

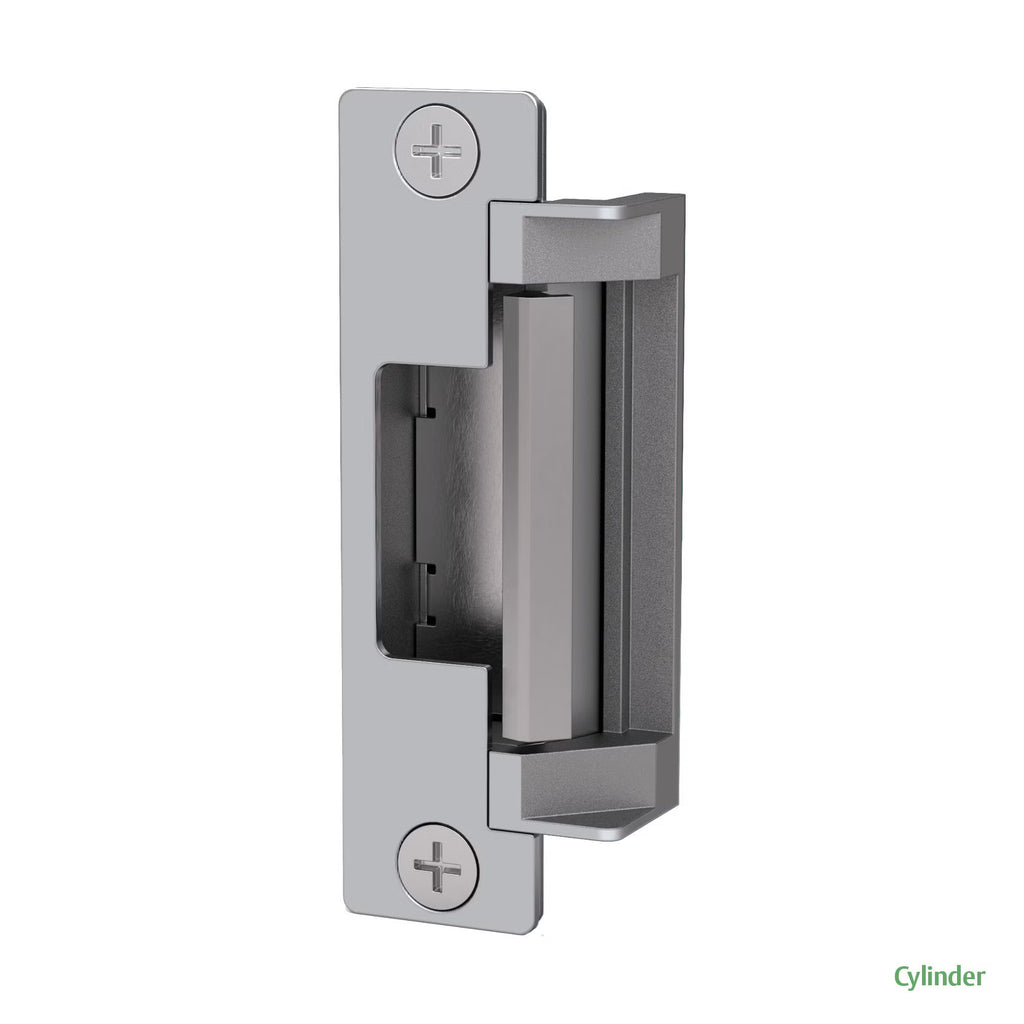

Cylindrical Lockset

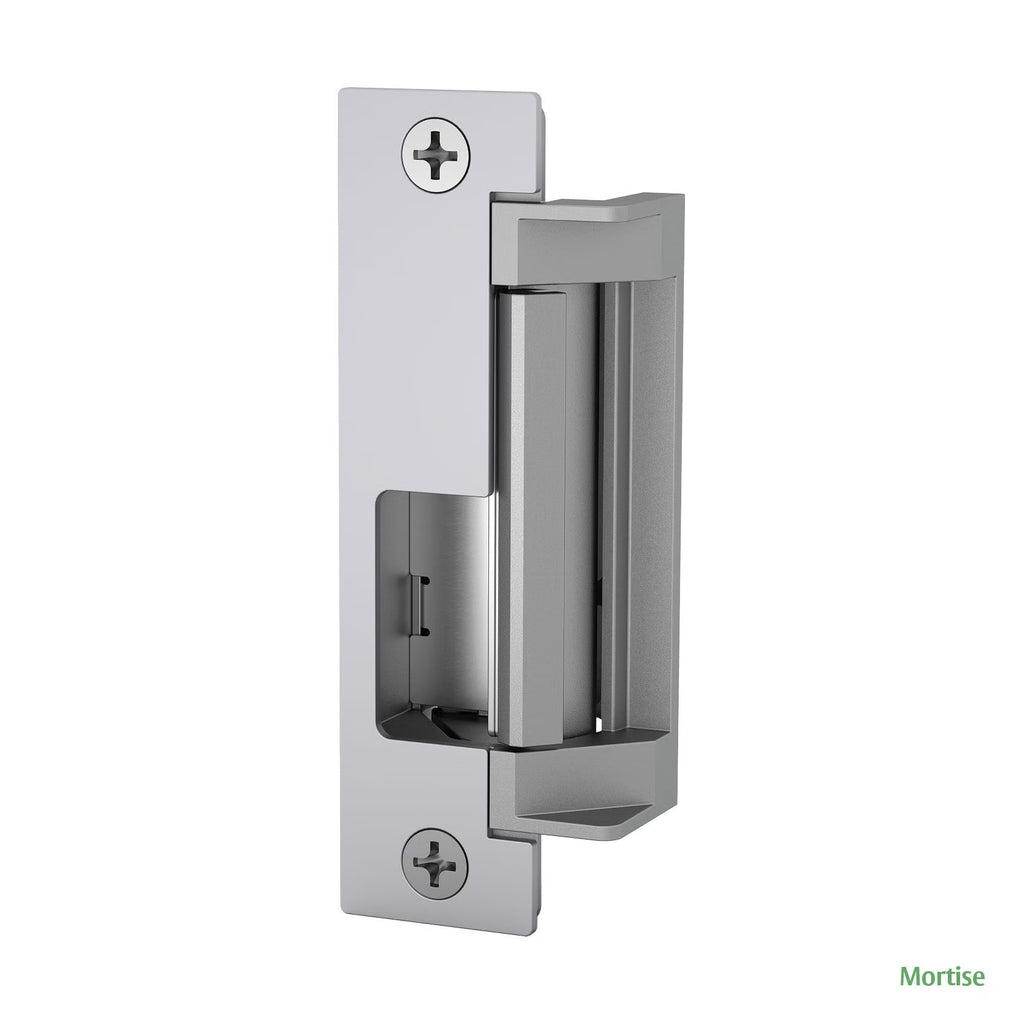

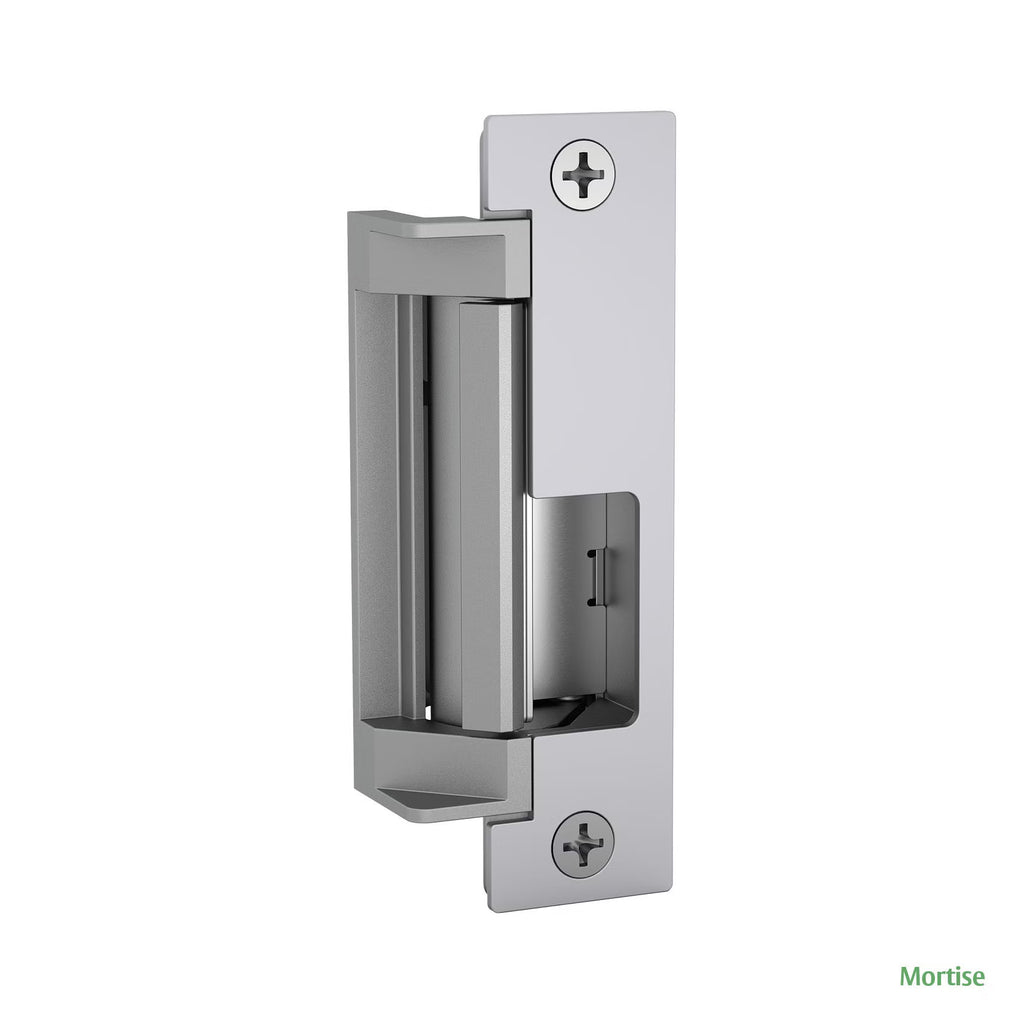

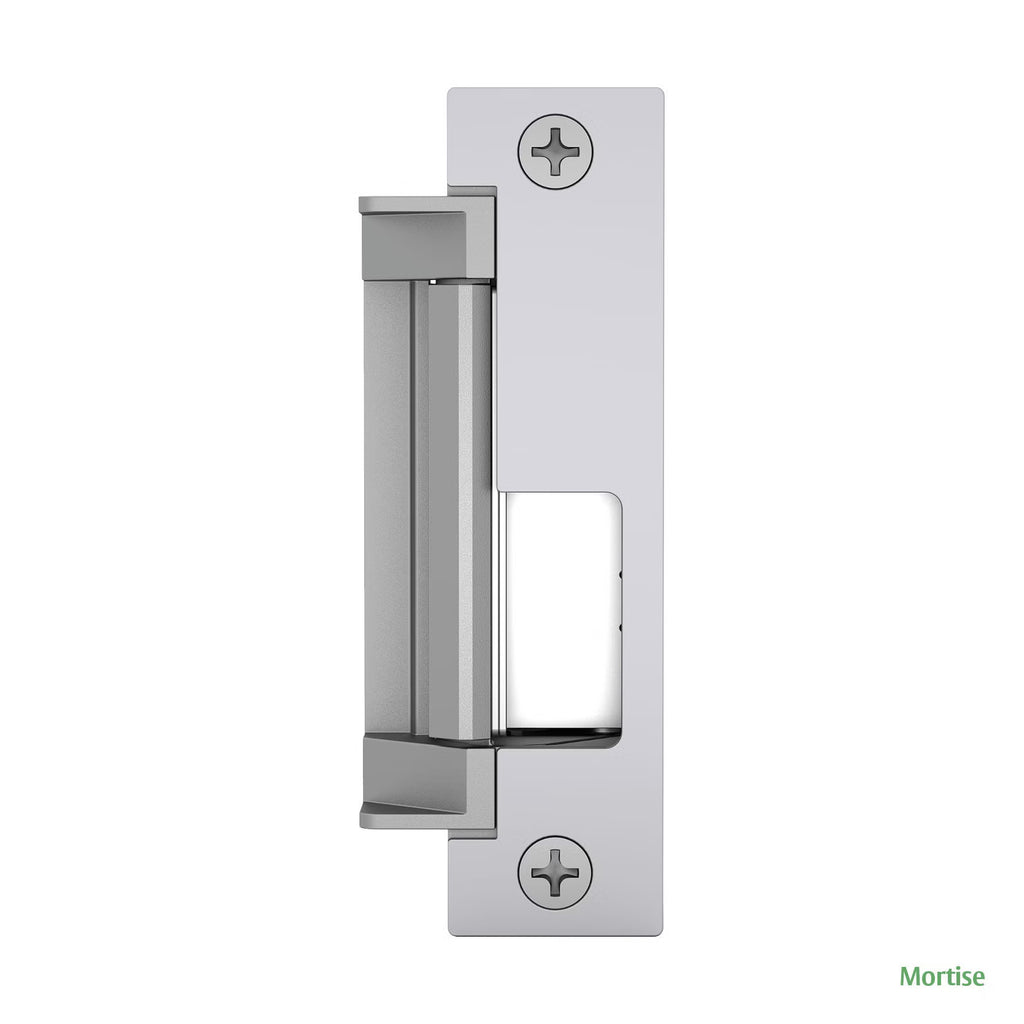

Mortise Locks without Deadbolt

Product Features

Stainless steel construction
Tamper resistant
Static strength 1,500 lbs.
Dynamic strength 100 ft-lbs.
Endurance 1,000,000 cycles
Field selectable fail safe/fail secure
Two faceplates provided to accommodate a variety of locksets
Non-handed
Internally mounted solenoid
Accommodates up to a 3/4" latchbolt
Strike body depth 1-3/8"
Plug-in connector
Trim enhancer

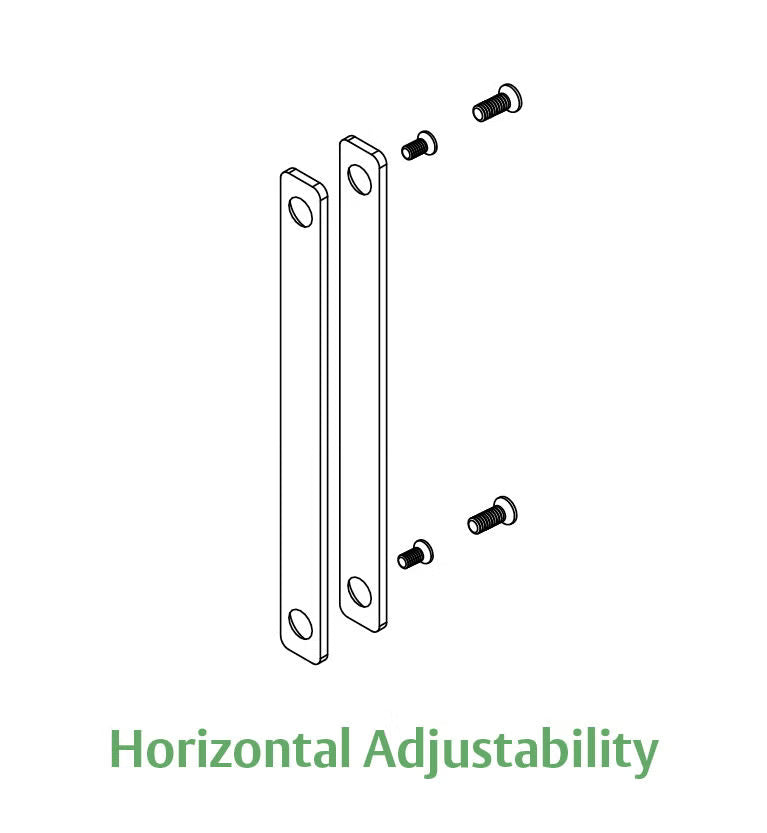

Full keeper shims for horizontal adjustment
SecuriCare five-year, no-fault, no questions asked warranty (Addition of SMART Pac® III extends the warranty to 10 years)
