HES 1500 Series Electric Strike Complete Pack

$389.48

Monitoring Options

N/A - No Monitoring LM (Lock Monitor) DLM (Dual Lock Monitor) LMS (Lock Monitor & Strike Monitor) DLMS (Dual Lock Monitor & Strike Monitor)

For bulk or custom orders, contact our sales team.

Need Help?

Shipping Returns / Exchanges Contact

The HES 1500 Series electric strike is more than a new heavy duty, low profile solution for latchbolt locks. It accommodates every brand of cylindrical or mortise lock designed to work with a 4-7/8” strike plate.

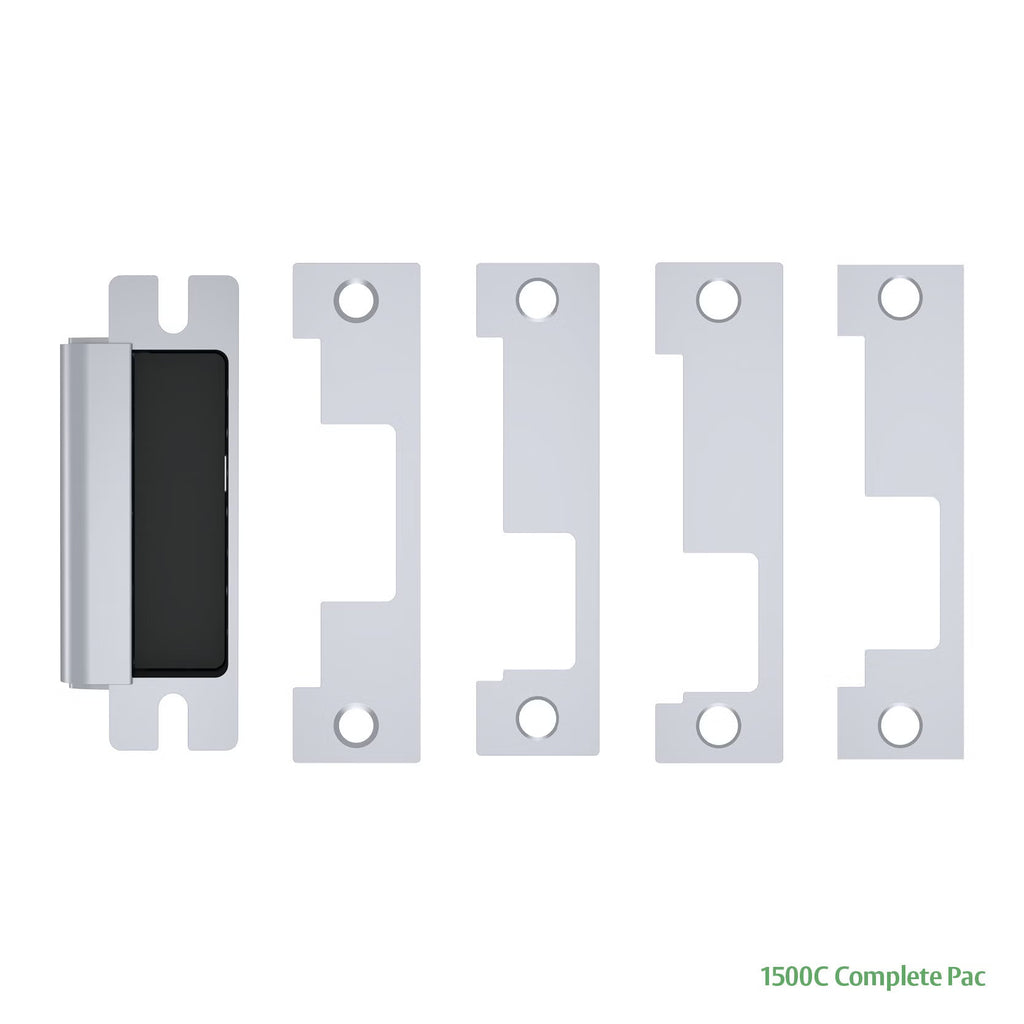

Complete Pack- includes 1LB faceplate kit for Locks

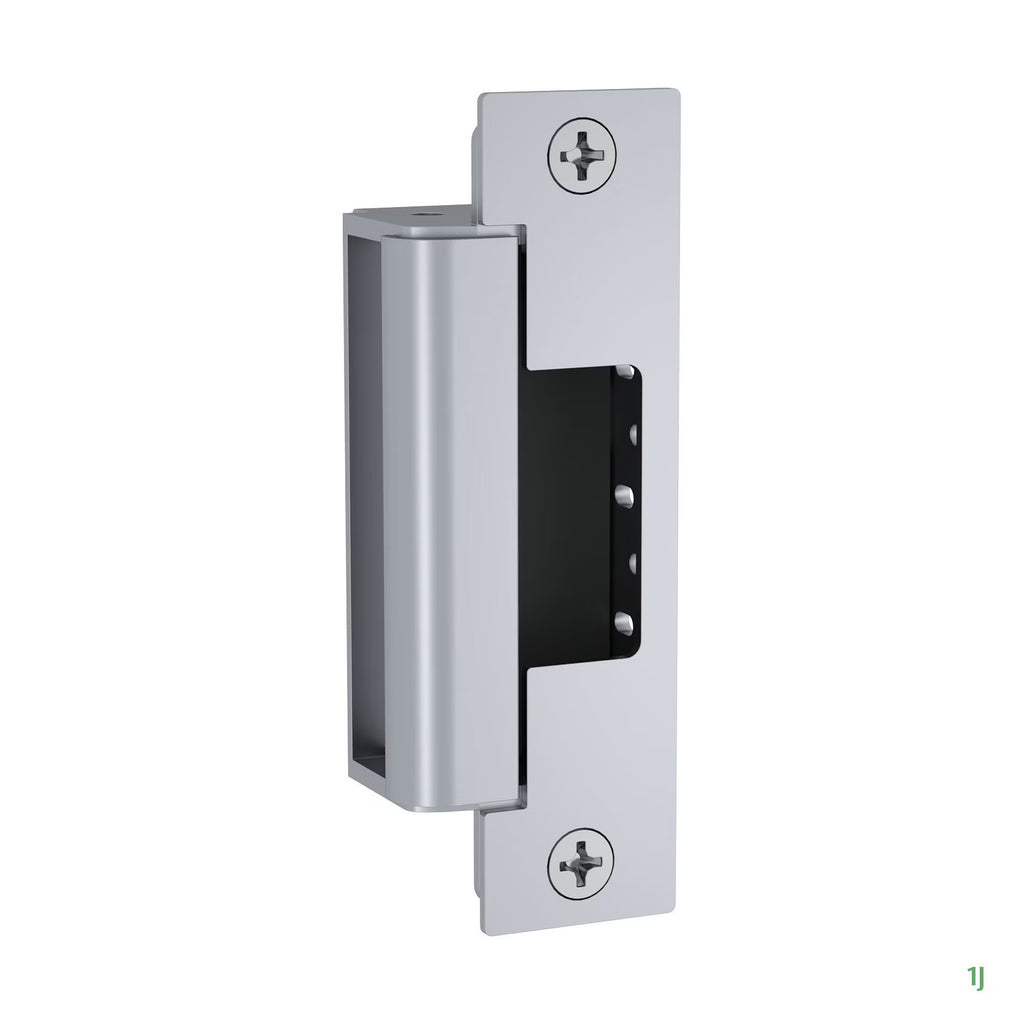

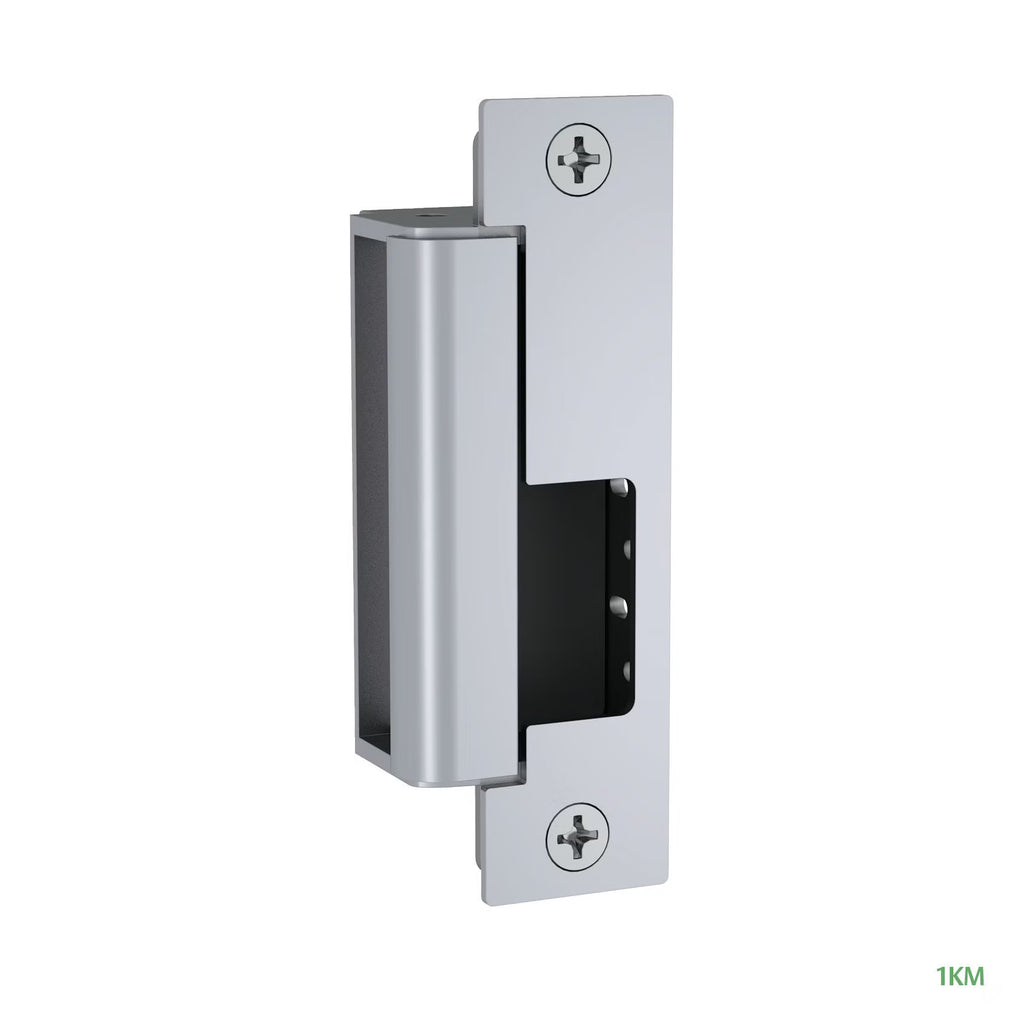

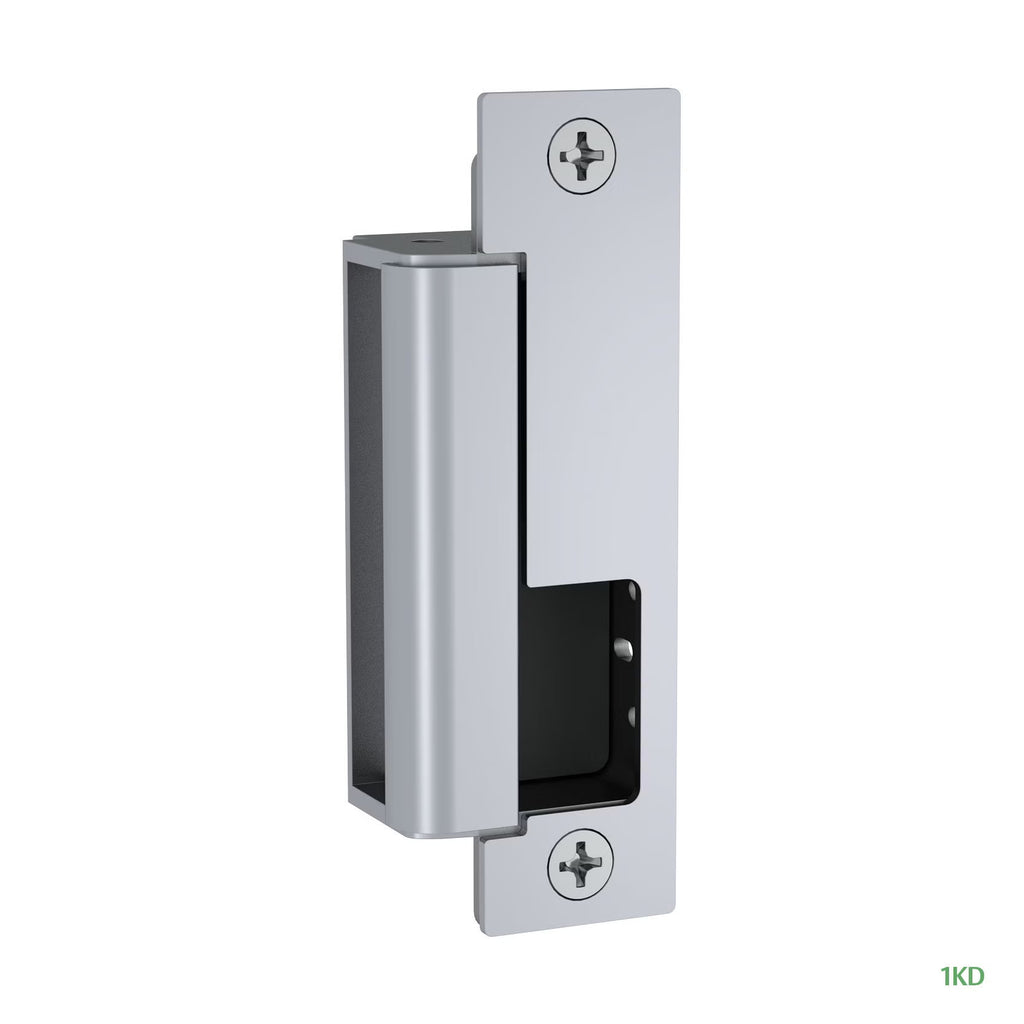

(Kit includes 1J, 1K, 1KD and 1KM faceplates)

COLOR: Satin stainless steel (630)

The HES 1500 Series Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design.

Windstorm Resistant
Burglary Rated
Fire-Rated
Grade 1
Outdoor Rated
SecuriCare Warranty
PoE Friendly
Fail Secure/Fail Safe
Dual Voltage
Cylindrical Lockset
Mortise Locks without Deadbolt

Product Features

Stainless steel construction
Tamper resistant
Static strength 1500 lbs
Dynamic strength 70 ft-lbs
Endurance 1,000,000 cycles
Field selectable fail safe/fail secure
Non-handed
Interchangeable faceplates and accessories
Field replaceable components
Fully finished faceplate, keeper, case and trim

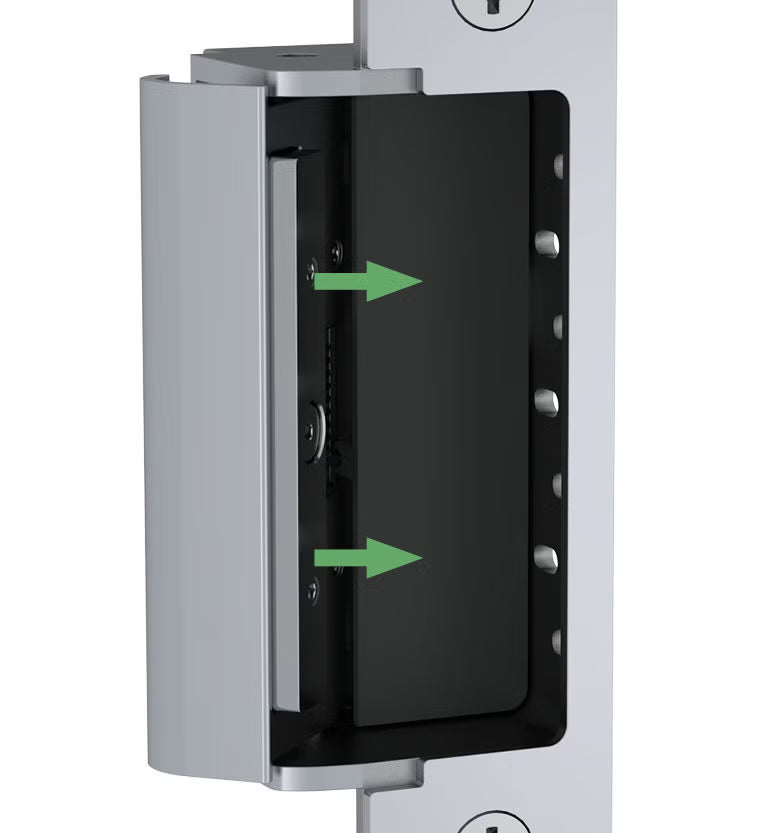

Field adjustable integrated shim

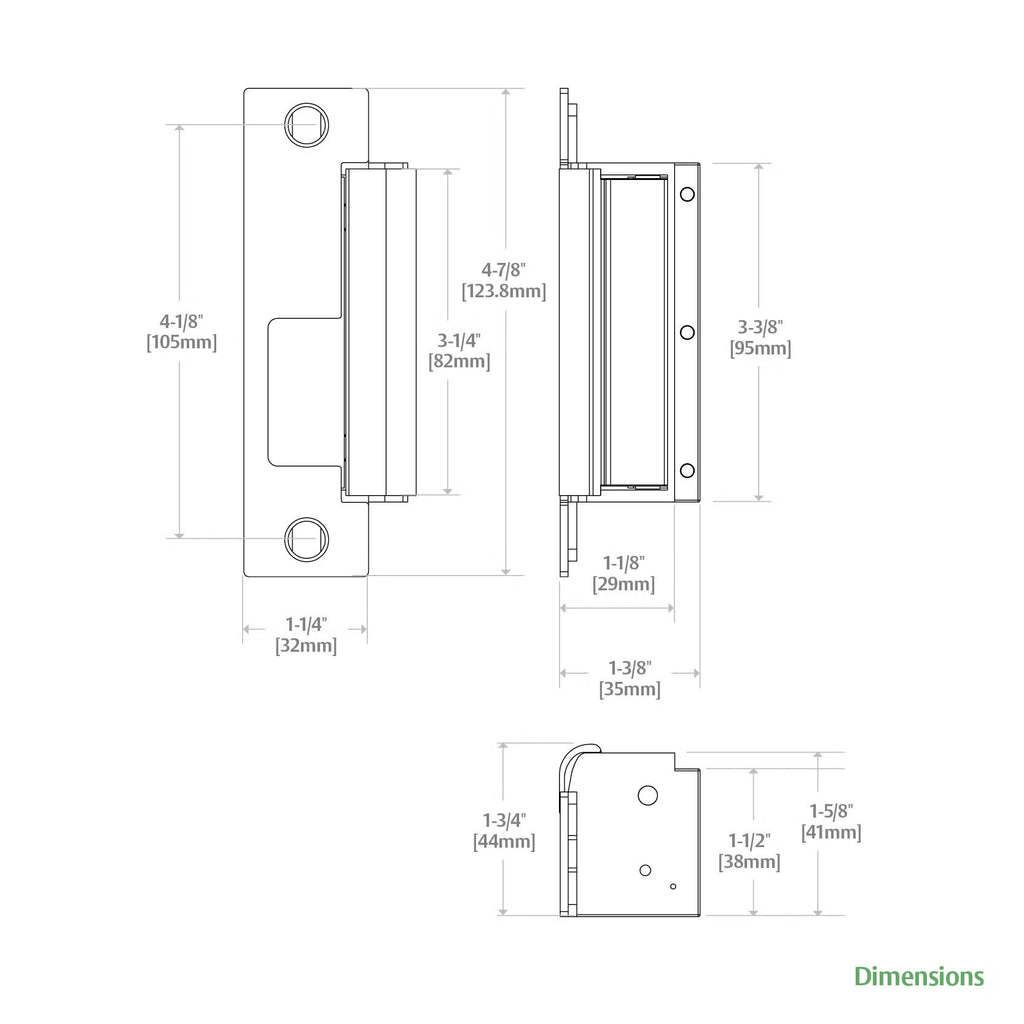

Strike body depth 1-3/8" [34.9mm]
SecuriCare five-year, no-fault, no questions asked warranty (Addition of SMART Pac III extends the warranty to 10 years)

Monitoring Options:

LM (Lock Monitor): A single switch that monitors the latchbolt or deadbolt in the pocket.
DLM (Dual Lock Monitor): Two switches that allow both deadbolt and latchbolt monitoring.
LMS (Lock Monitor & Strike Monitor ): A dual switch that monitors the latchbolt/deadbolt and the solenoid position to determine lock status.
DLMS (Dual Lock Monitor & Strike Monitor): Three switches that monitor the latchbolt, deadbolt, and solenoid position.
