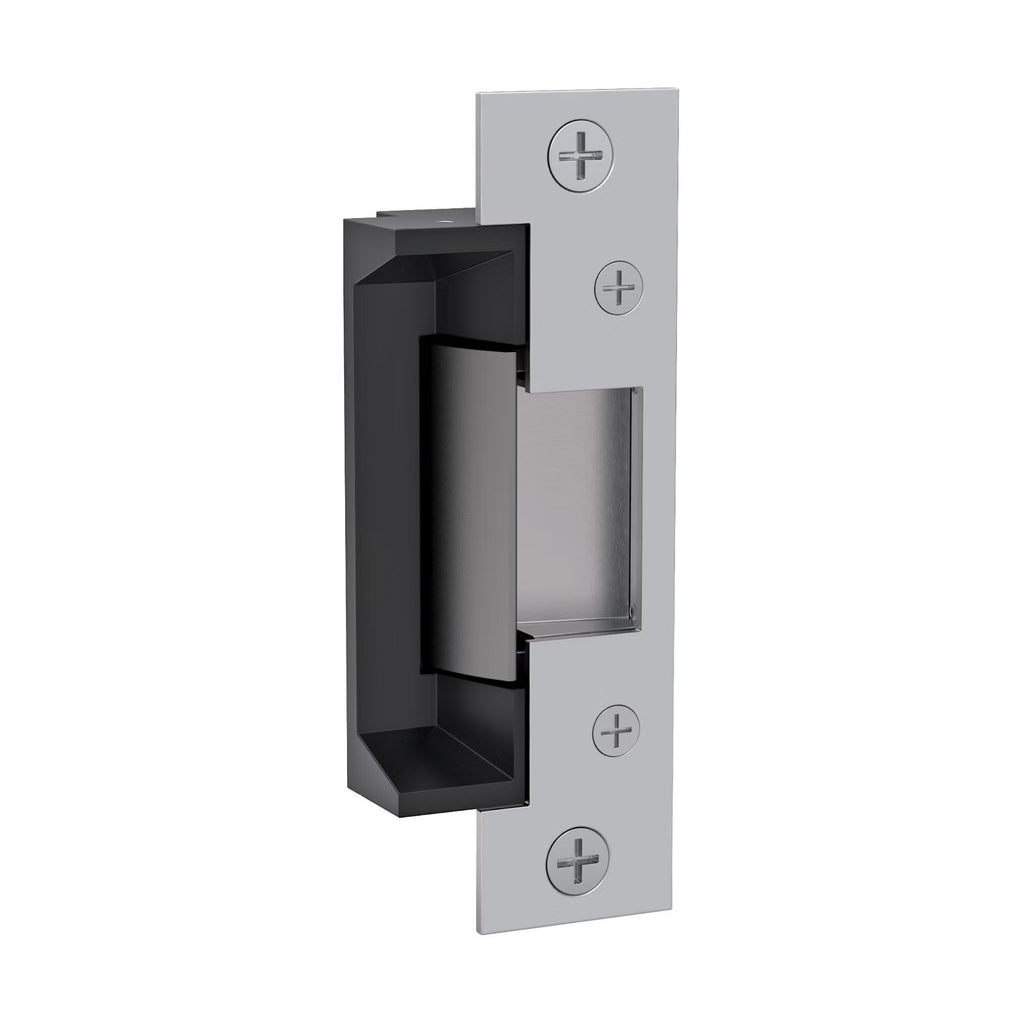

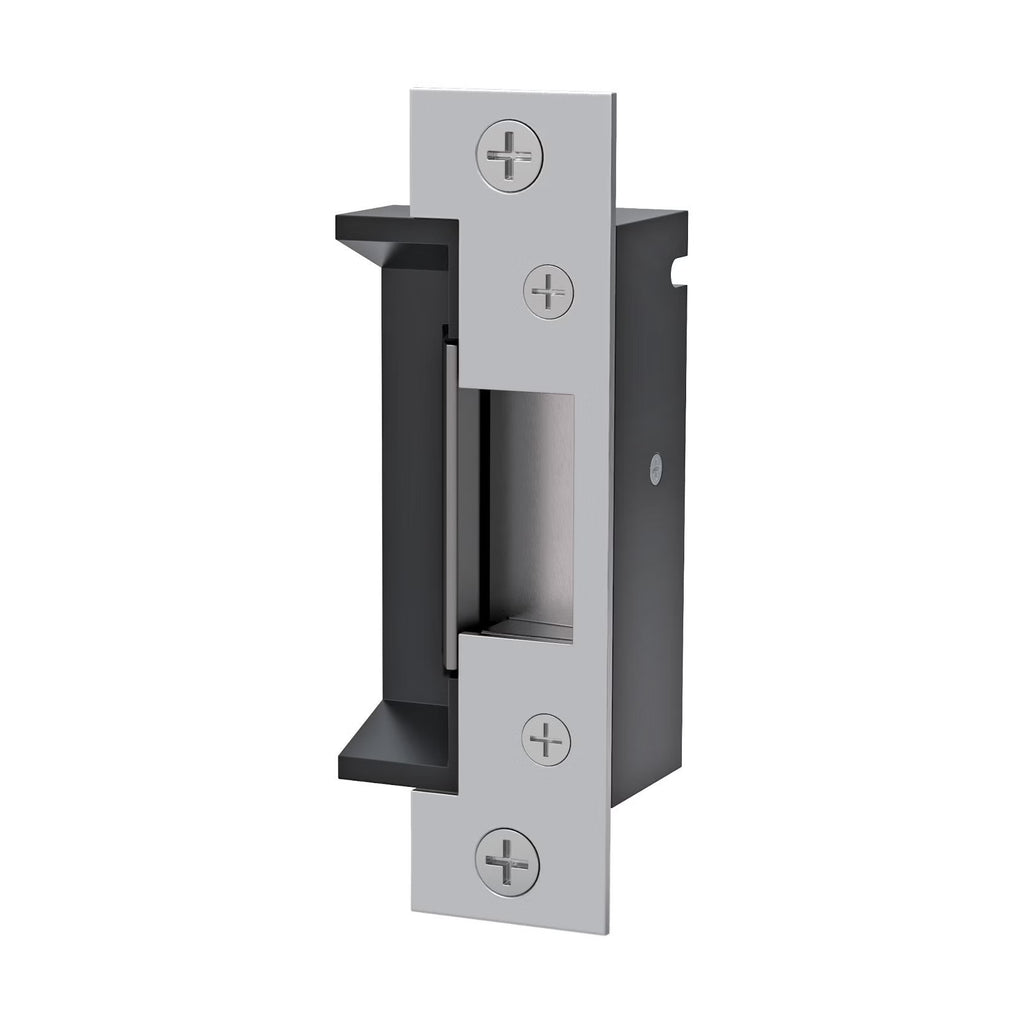

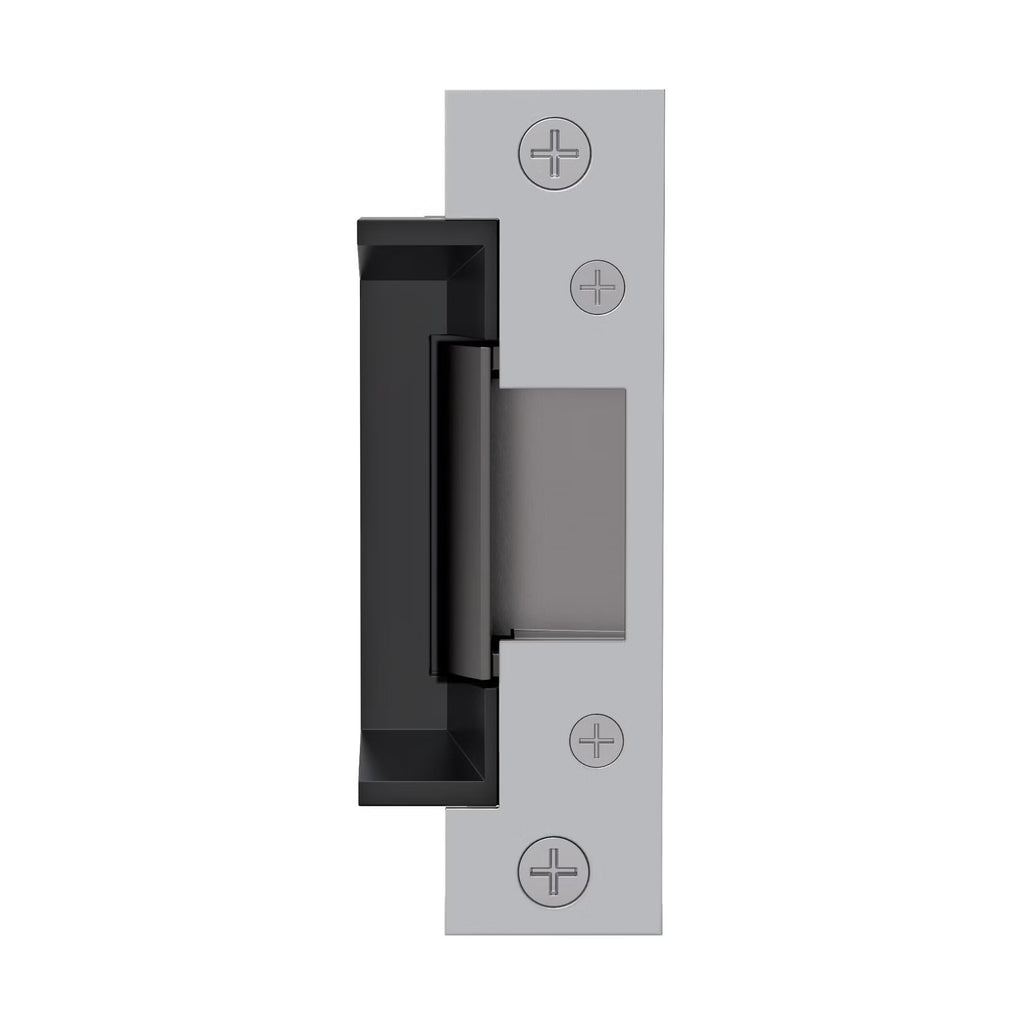

HES 5000C Series Electric Strike

$132.08

For bulk or custom orders, contact our sales team.

Need Help?

The compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb.

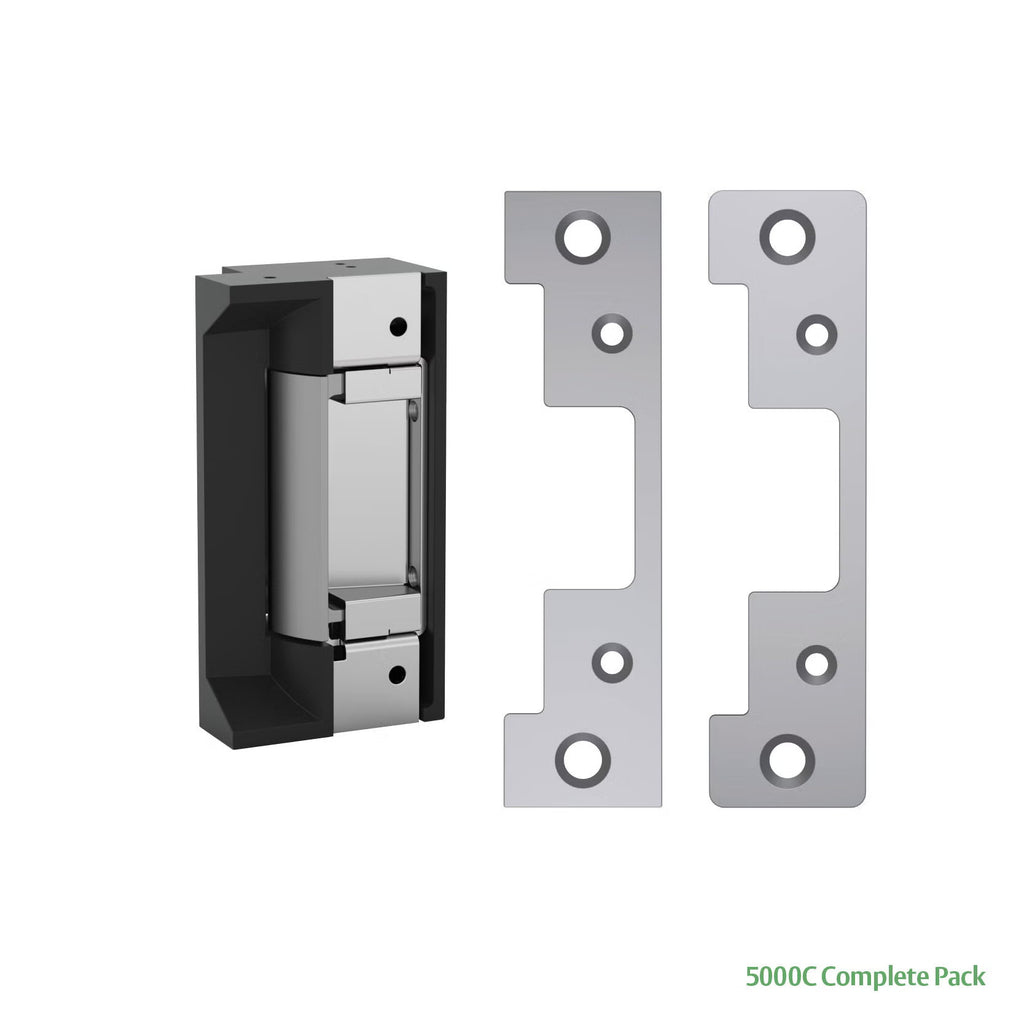

Complete Pack - includes:

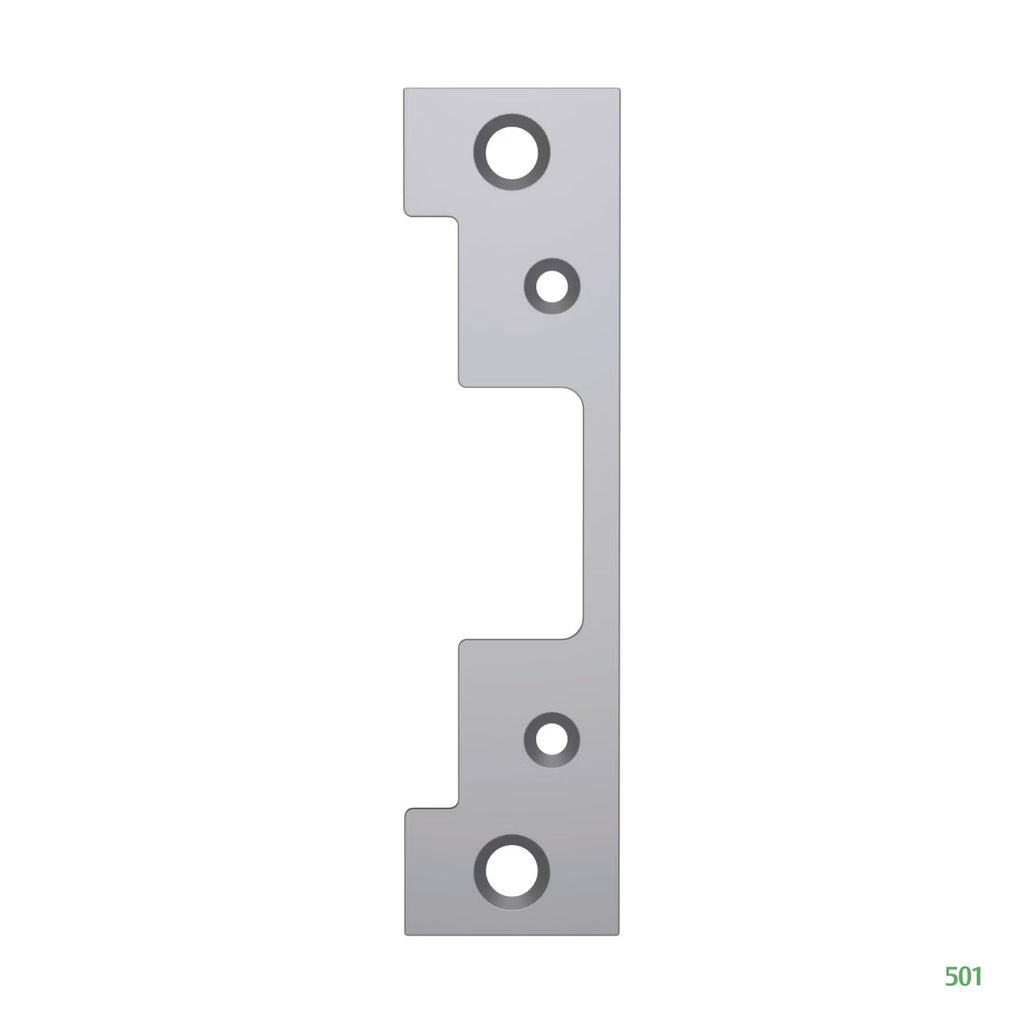

501 faceplates (For use with cylindrical locksets in ANSI metal jambs.)

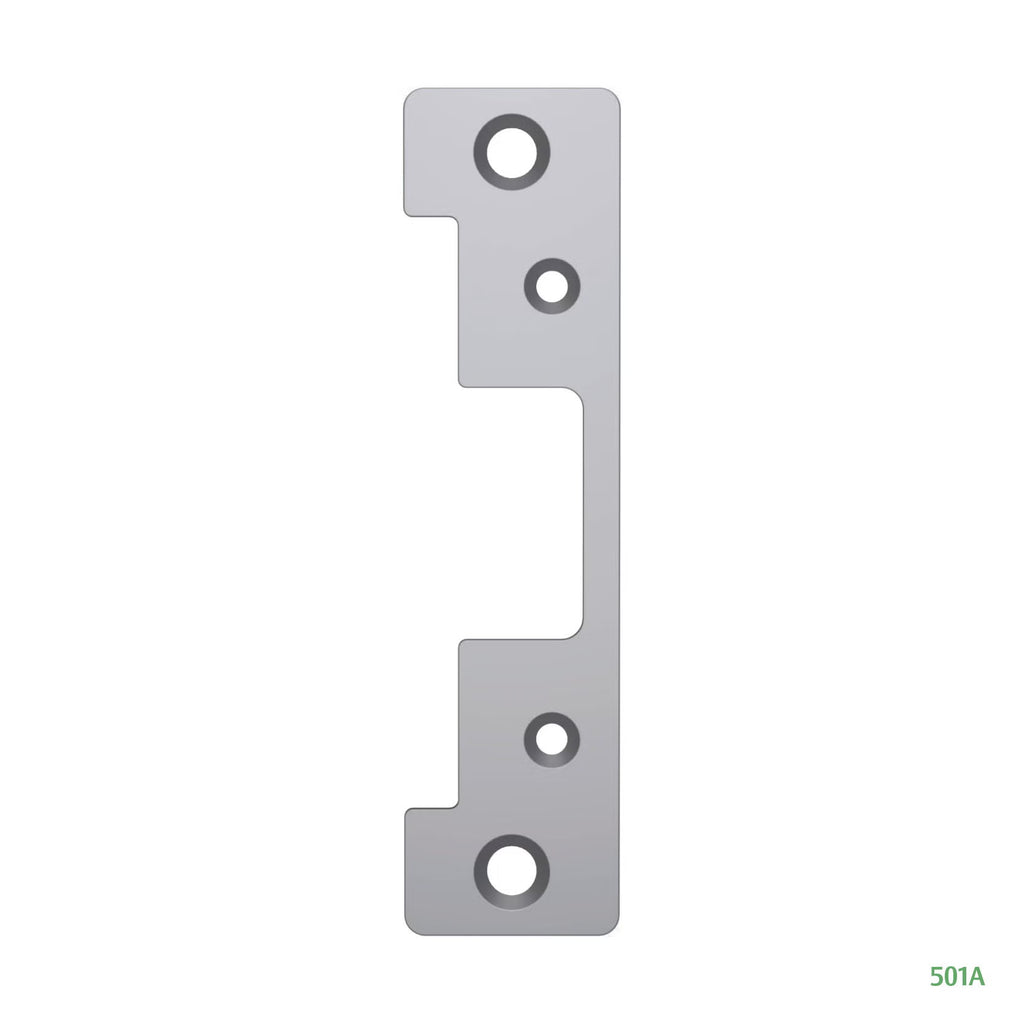

501A faceplates (For use with cylindrical locksets or spring latches in aluminum frames. Includes universal mounting tabs.)

COLOR: Satin stainless steel (630)

The HES 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Windstorm Resistant
Burglary Rated
Outdoor Rated
PoE Friendly
Fail Secure/Fail Safe
Grade 1
Dual Voltage
SecuriCare Warranty
Cylindrical Lockset

Product Features

Tamper resistant
Static strength 1,500 lbs
Dynamic strength 70 ft-lbs.
Endurance 1,000,000 cycles
Field selectable fail secure/ fail safe
Non-handed
Internally mounted solenoid
Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
Strike body depth 1-1/16"
Plug-in connector
Trim enhancer included
SecuriCare five-year, no-fault, no questions asked warranty (Addition of SMART Pac® III extends the warranty to 10 years)

Monitoring Options

N/A - No Monitoring
LBM (Latchbolt Monitoring)
