EMTEK Franklin Tubular Entry Set

Passer aux informations sur le produit
EMTEK Franklin Tubular Entry Set

EMTEK Franklin Tubular Entry Set

$406.40
Handleset Function

Fits standard door thickness of 1-3/4”; specify if thicker. BOTH backsets included: 2-3/8" & 2-3/4"

Lever / Knob
Handling
Finish / Color
SKU:

For bulk or custom orders, contact our sales team.

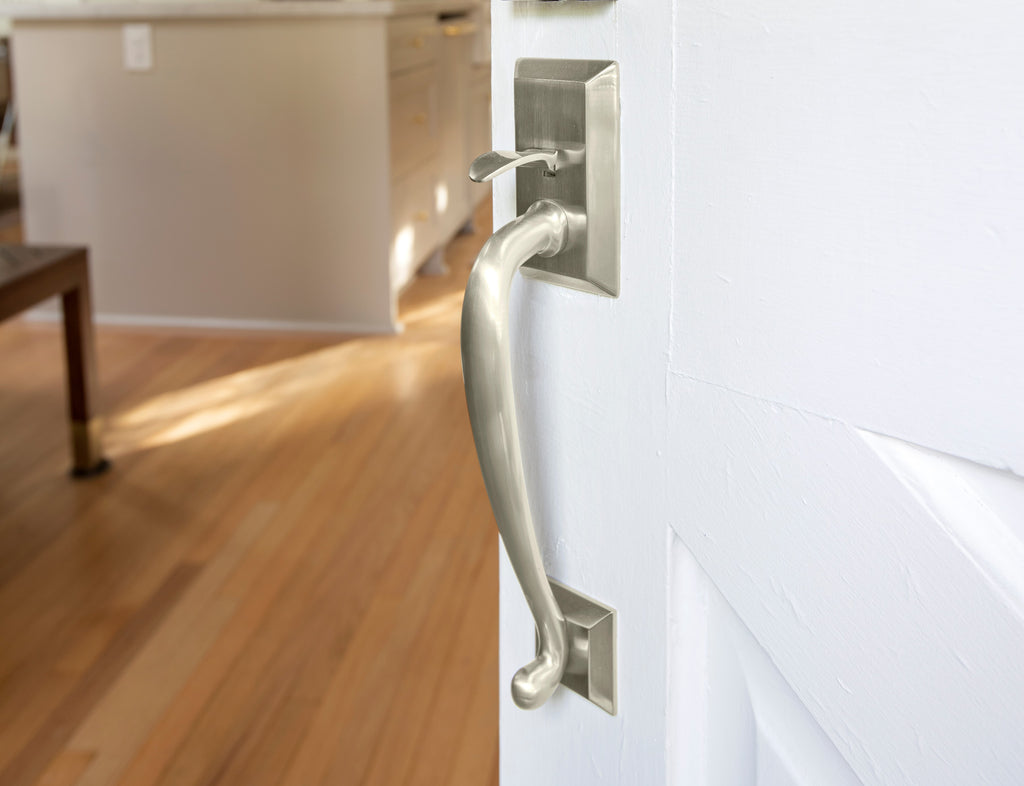

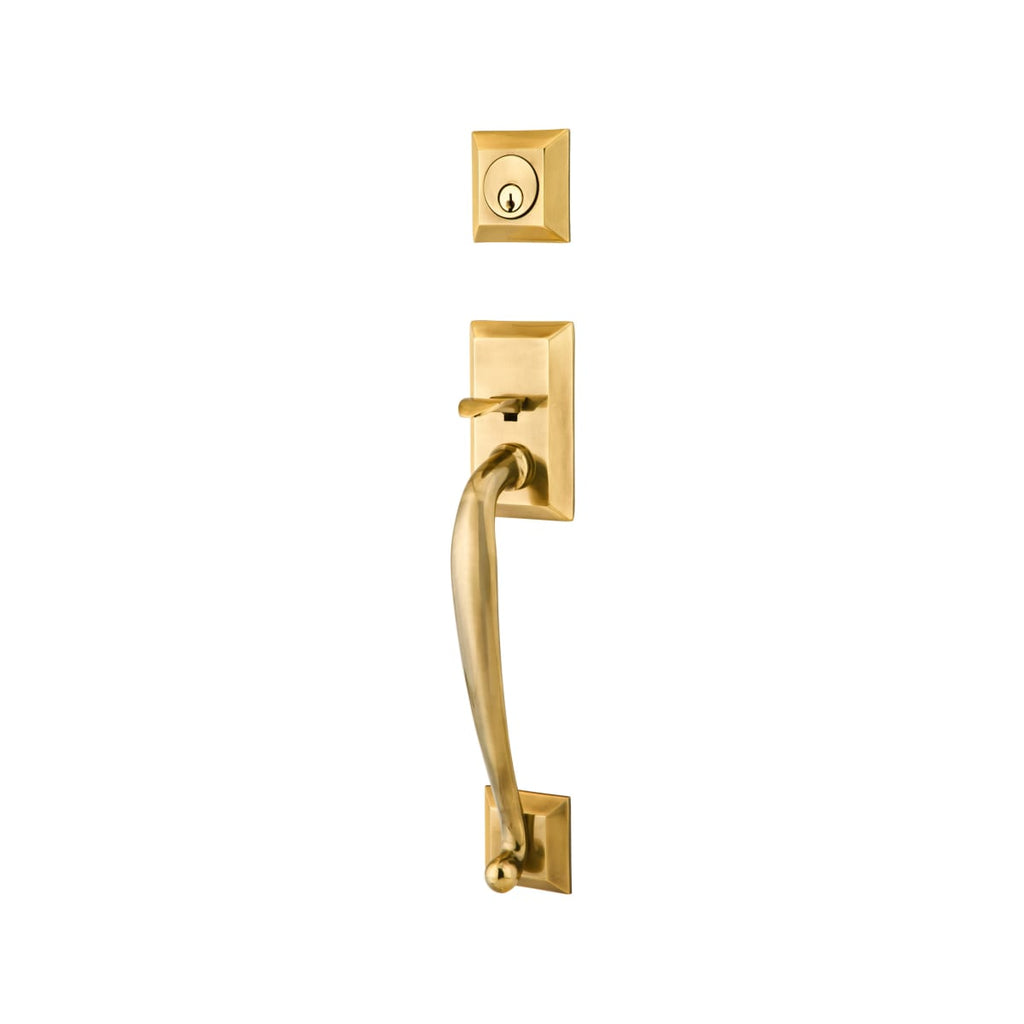

The EMTEK Franklin Tubular Entry Set blends classic elegance with modern simplicity. Its gracefully contoured grip offers a comfortable, inviting feel, while the sectional backplate provides a refined, structured profile that enhances the door’s architectural presence. Crafted as a complete entry solution, the Franklin set includes all necessary installation hardware and pairs seamlessly with any EMTEK knob or lever for interior trim. Offered in a curated selection of distinguished finishes, the Franklin entry set delivers enduring craftsmanship, versatile style, and a confident, polished statement at any front entryway.

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

Fits standard door thickness of 1-3/4”; specify if thicker.

BOTH backsets included: 2-3/8" & 2-3/4"

EMPowered™ 2

The "EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™ 2 fits door thickness up to 2¼”.

Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever is used inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.



Dimensions

Deadbolt

  • Plate Width: 2-½"
  • Plate Height: 2-½"
  • Key Cylinder Height: 1-3/4”

Exterior Grip Handle

  • Overall Height: 13-1/8"
  • Top Plate Width: 2-3/4"
  • Top Plate Height: 4-1/2”
  • Bottom Plate Width: 2-1/4"
  • Bottom Plate Height: 2-1/4”

Interior Trim

  • Thumb turn Width: 2-½"
  • Thumb turn Height: 2-½"
  • Trim Plate Width 2 ½"
  • Trim Plate Height 2 ½"



Additional Dimensions

  • Exterior Projection: 2-11/16"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1-5/16”
  • Clearance between door and grips: 1-9/16”
  • Plate Thickness: ½"



Same Dimensions for the Single Cylinder, Double Cylinder and Dummy Function



Standard Components for Single Cylinder:

  • Standard Door Thickness: 1-3⁄4”- 2-1⁄8”
  • 1 1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2 1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  • Deadbolt Strike Plate

Standard Components for Double Cylinder:

  •  Standard Door Thickness: 1-5⁄8”- 2-1⁄8”
  • 1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Please specify Extended Door Thickness

The EMTEK Franklin Tubular Entry Set blends classic elegance with modern simplicity. Its gracefully contoured grip offers a comfortable, inviting feel, while the sectional backplate provides a refined, structured profile that enhances the door’s architectural presence. Crafted as a complete entry solution, the Franklin set includes all necessary installation hardware and pairs seamlessly with any EMTEK knob or lever for interior trim. Offered in a curated selection of distinguished finishes, the Franklin entry set delivers enduring craftsmanship, versatile style, and a confident, polished statement at any front entryway.

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

Fits standard door thickness of 1-3/4”; specify if thicker.

BOTH backsets included: 2-3/8" & 2-3/4"

EMPowered™ 2

The "EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™ 2 fits door thickness up to 2¼”.

Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever is used inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.



Dimensions

Deadbolt

  • Plate Width: 2-½"
  • Plate Height: 2-½"
  • Key Cylinder Height: 1-3/4”

Exterior Grip Handle

  • Overall Height: 13-1/8"
  • Top Plate Width: 2-3/4"
  • Top Plate Height: 4-1/2”
  • Bottom Plate Width: 2-1/4"
  • Bottom Plate Height: 2-1/4”

Interior Trim

  • Thumb turn Width: 2-½"
  • Thumb turn Height: 2-½"
  • Trim Plate Width 2 ½"
  • Trim Plate Height 2 ½"



Additional Dimensions

  • Exterior Projection: 2-11/16"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1-5/16”
  • Clearance between door and grips: 1-9/16”
  • Plate Thickness: ½"



Same Dimensions for the Single Cylinder, Double Cylinder and Dummy Function



Standard Components for Single Cylinder:

  • Standard Door Thickness: 1-3⁄4”- 2-1⁄8”
  • 1 1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2 1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  • Deadbolt Strike Plate

Standard Components for Double Cylinder:

  •  Standard Door Thickness: 1-5⁄8”- 2-1⁄8”
  • 1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Please specify Extended Door Thickness
