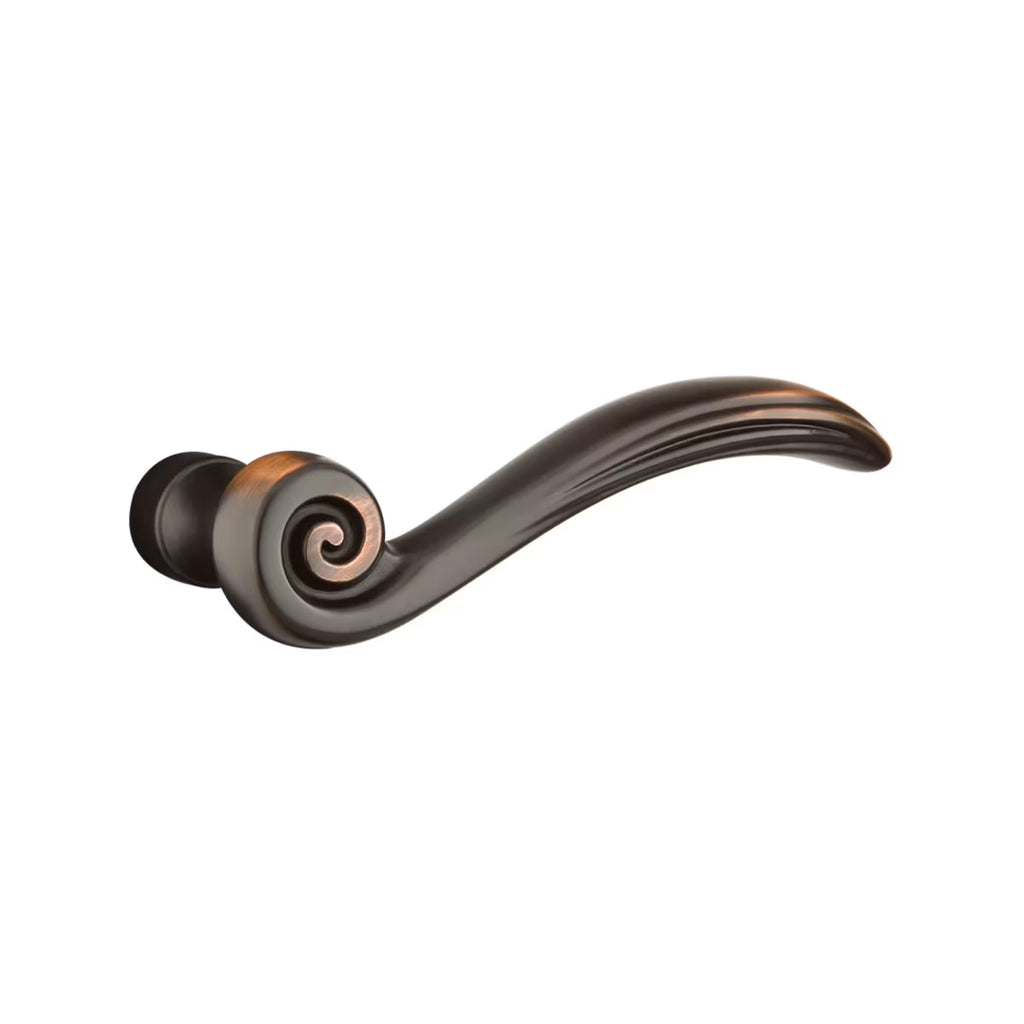

EMTEK Elan Lever

Passer aux informations sur le produit
EMTEK Elan Lever
  • EMTEK Elan Lever
  • EMTEK Elan Lever
  • EMTEK Elan Lever
  • EMTEK Elan Lever
EMTEK Elan Lever

EMTEK Elan Lever

$152.00
Knob Functions
Rosette
Handling
Finish / Color
Backsets
Latches
SKU:

For bulk or custom orders, contact our sales team.

Need Help?

Shipping Returns / Exchanges Contact

• Standard latch is for 2-3/8” backset. Specify 2-¾” backset if required.
• Sold as complete set includes standard rotation latch, strike plate and dust box. Specify Drive-in latch if required.
• Latches come standard with square corner strike and face plates. Specify radius corners if required.
• 28º rotation latch can be ordered with any standard Leverset for an additional $10 USD, Please specify.

*Unlacquered Brass is available for an additional charge of $20 USD per item

Specs:

Standard Door Thickness: 1-¼” - 2”

  • Privacy Pin (for Privacy sets)
  • Inside Passage Half Spindle
  • 1-½" Rosette Screws
  • Full lip plate



Extended Door Thickness: 2”- 2-½"

Extended Components

  • See privacy pin (for Privacy sets)
  • Long Inside Passage Half Spindle
  • 2” Rosette Screws
  • Extended Full Lip Strike



Extended Door Thickness: 2-½”- 3”

Extended Components

  • See privacy pin (for Privacy sets)
  • Extra Long Inside Passage Half Spindle
  • 2-½" Rosette Screws
  • Extended Full lip Strike



Lever Dimensions:

  • Length: 4-¾”
  • Clearance: 1-¼”
  • Projection: 2-¼”



Rosette Dimensions

Quincy Rosette

  • Height: 2-5/8”
  • Width: 2-½"
  • Thickness: 3/8”



Wilshire Rosette

  • Height: 3”
  • Width: 2-½"
  • Thickness: 7/16”



#8 Rosette

  • Height:4-3/8”
  • Width: 2-9/16”
  • Thickness: 3/8”



Regular Rosette

  • Diameter: 2-¾"
  • Thickness: 3/8”



Watford Rosette

  • Diameter: 2-½”
  • Thickness: 3/8”



Rectangular Rosette

  • Height:4-3/8”
  • Width: 2-9/16”
  • Thickness: 3/8”



Oval Rosette

  • Height: 4-½"
  • Width: 2-½"
  • Thickness: 7/16”



Rope Rosette

  • Diameter: 2-¾"
  • Thickness: 3/8”



Lancaster Rosette

  • Diameter: 2-¾"
  • Thickness: 3/8”



Ribbon and Reed Rosette

  • Diameter: 2-¾"
  • Thickness: 3/8”













• Standard latch is for 2-3/8” backset. Specify 2-¾” backset if required.
• Sold as complete set includes standard rotation latch, strike plate and dust box. Specify Drive-in latch if required.
• Latches come standard with square corner strike and face plates. Specify radius corners if required.
• 28º rotation latch can be ordered with any standard Leverset for an additional $10 USD, Please specify.

*Unlacquered Brass is available for an additional charge of $20 USD per item

Specs:

Standard Door Thickness: 1-¼” - 2”

  • Privacy Pin (for Privacy sets)
  • Inside Passage Half Spindle
  • 1-½" Rosette Screws
  • Full lip plate



Extended Door Thickness: 2”- 2-½"

Extended Components

  • See privacy pin (for Privacy sets)
  • Long Inside Passage Half Spindle
  • 2” Rosette Screws
  • Extended Full Lip Strike



Extended Door Thickness: 2-½”- 3”

Extended Components

  • See privacy pin (for Privacy sets)
  • Extra Long Inside Passage Half Spindle
  • 2-½" Rosette Screws
  • Extended Full lip Strike



Lever Dimensions:

  • Length: 4-¾”
  • Clearance: 1-¼”
  • Projection: 2-¼”



Rosette Dimensions

Quincy Rosette

  • Height: 2-5/8”
  • Width: 2-½"
  • Thickness: 3/8”



Wilshire Rosette

  • Height: 3”
  • Width: 2-½"
  • Thickness: 7/16”



#8 Rosette

  • Height:4-3/8”
  • Width: 2-9/16”
  • Thickness: 3/8”



Regular Rosette

  • Diameter: 2-¾"
  • Thickness: 3/8”



Watford Rosette

  • Diameter: 2-½”
  • Thickness: 3/8”



Rectangular Rosette

  • Height:4-3/8”
  • Width: 2-9/16”
  • Thickness: 3/8”



Oval Rosette

  • Height: 4-½"
  • Width: 2-½"
  • Thickness: 7/16”



Rope Rosette

  • Diameter: 2-¾"
  • Thickness: 3/8”



Lancaster Rosette

  • Diameter: 2-¾"
  • Thickness: 3/8”



Ribbon and Reed Rosette

  • Diameter: 2-¾"
  • Thickness: 3/8”
