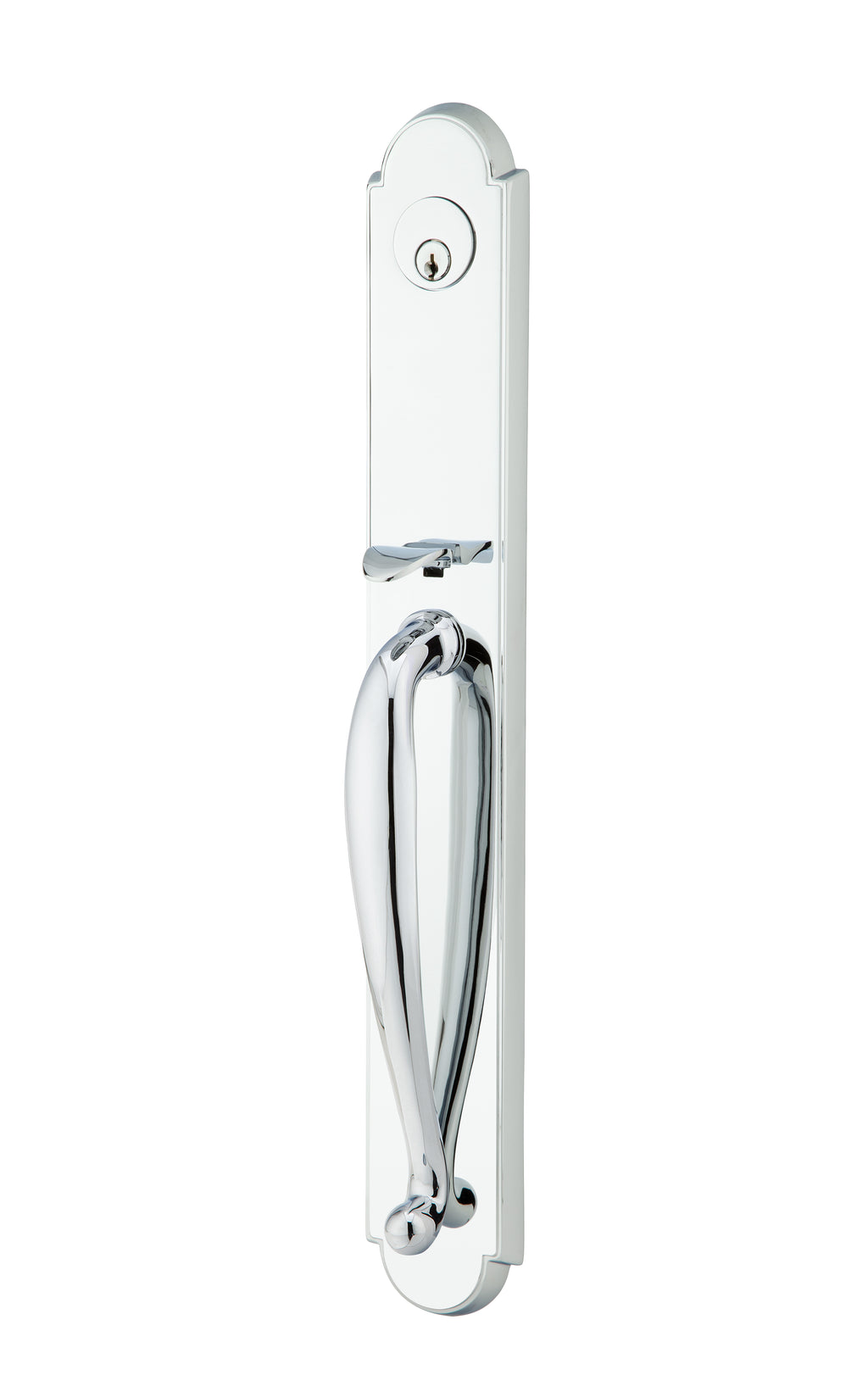

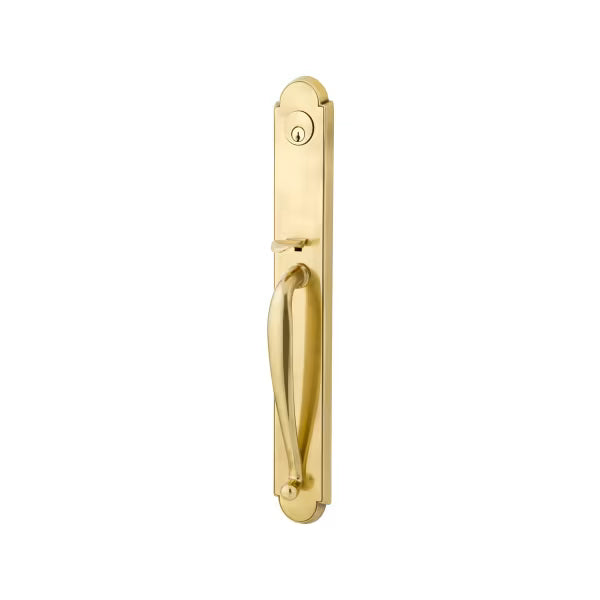

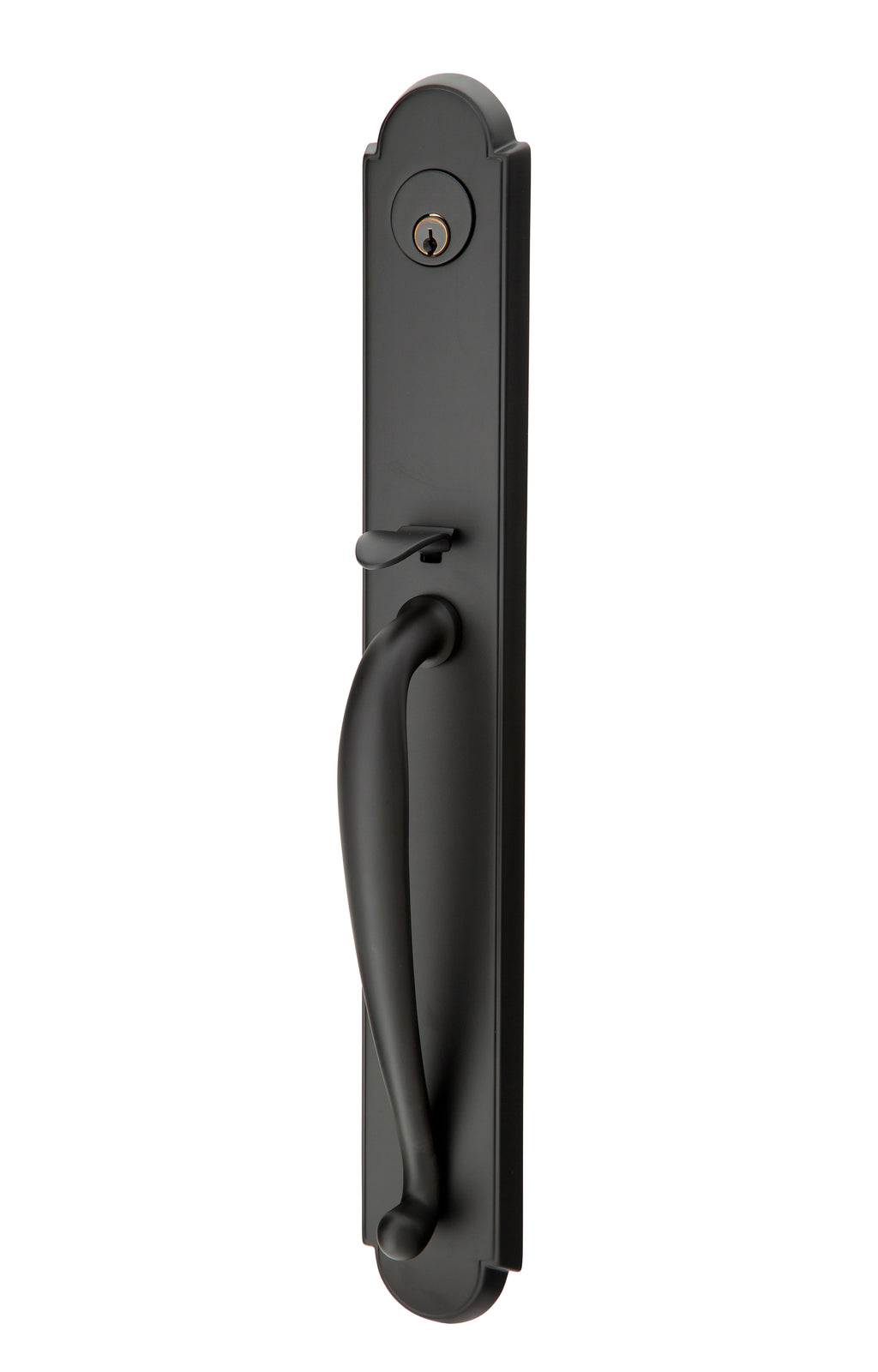

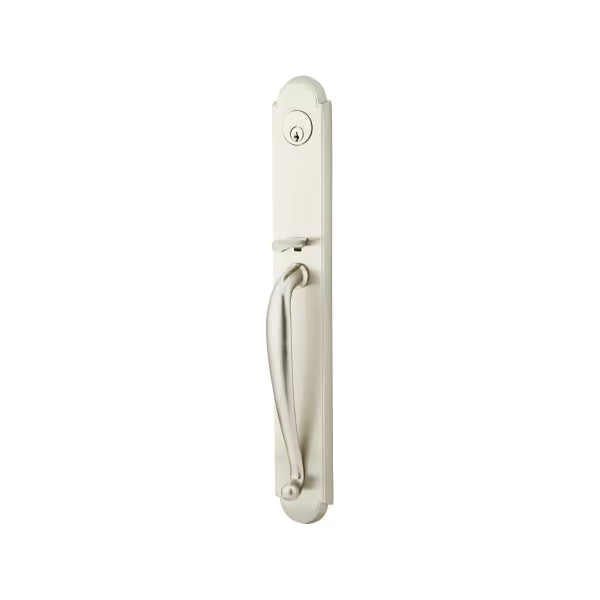

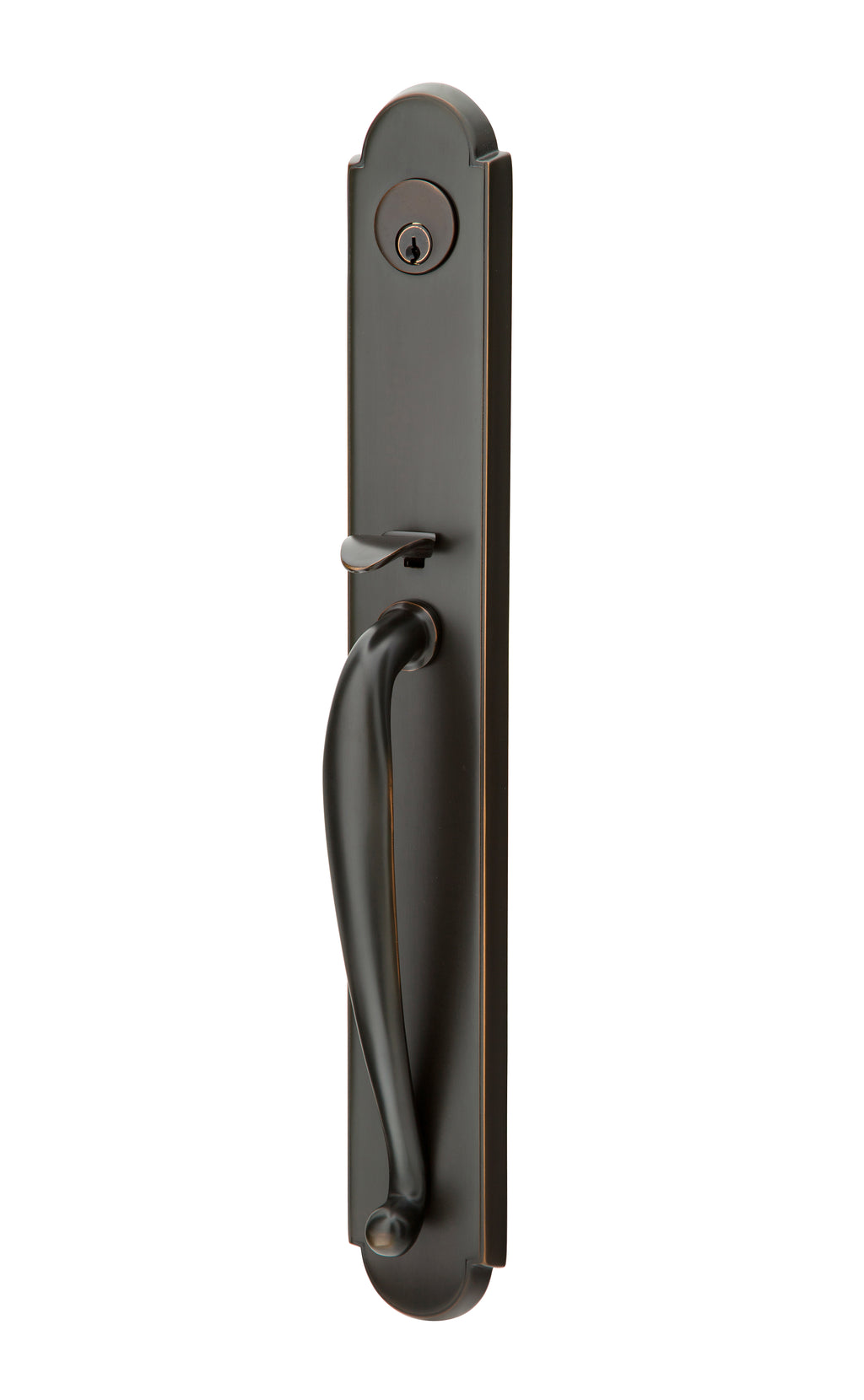

EMTEK Wilmington Tubular Entry Set

EMTEK Wilmington Tubular Entry Set

$547.20
Handleset Function

Fits standard door thickness of 1-3/4”; specify if thicker. BOTH backsets included: 2-3/8" & 2-3/4"

Lever / Knob
Handling
Finish / Color
SKU:

For bulk or custom orders, contact our sales team.

The EMTEK Wilmington Tubular Entry Set combines refined craftsmanship with modern appeal. Its gently contoured grip provides a comfortable, welcoming feel, while the full-length backplate creates a bold, uninterrupted profile that enhances the door’s architectural presence. Engineered as a complete entry solution, the Wilmington Tubular set includes all necessary installation hardware and pairs seamlessly with any EMTEK knob or lever for interior trim. Available in a curated selection of distinguished finishes, this entry set delivers lasting quality, versatile style, and a confident, polished statement at any front entryway.

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

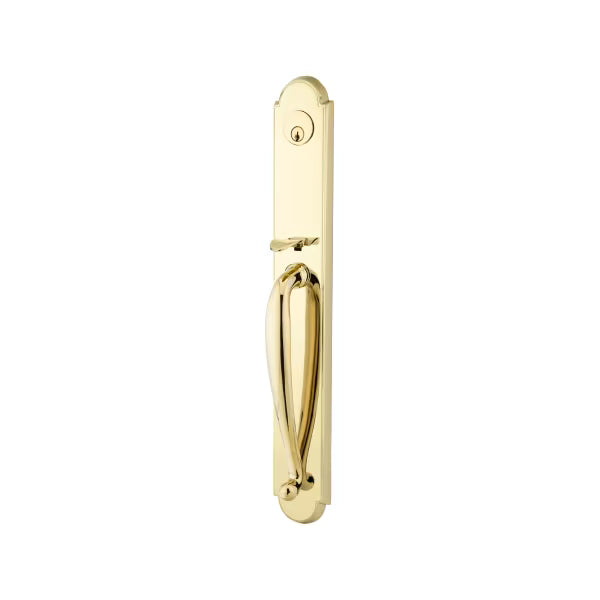

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

Fits standard door thickness of 1-3/4”; specify if thicker.

BOTH backsets included: 2-3/8" & 2-3/4"

EMPowered™ 2

The "EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™2 fits door thickness up to 2¼”.

Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever used on inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.

Dimensions

Exterior Dimensions

  • Overall Height: 19-1/4"
  • Overall Width: 2-7/8”
  • Deadbolt Height: 2-3/8"

Interior Dimensions

  • Height: 9-3/4"
  • Width: 2-7/8"
  • Thumbprint Height (form top): 2-3/8"
  • Knob Lever Height (from bottom): 2-1/8"

Additional Dimensions

  • Exterior Projection: 2-¾"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1”
  • Clearance between door and grips: 1-7/16”
  • Plate Thickness: ½"



Same Dimensions for the Single Cylinder , Double Cylinder and Dummy Function



Standard Components for Single Cylinder:

  • Standard Door Thickness: 1-3⁄4”- 2-1⁄8”
  • 1-1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  • Deadbolt Strike Plate

Standard Components for Double Cylinder:

  • Standard Door Thickness: 1-3⁄4”- 2”
  • 1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Please specify Extended Door Thickness

The EMTEK Wilmington Tubular Entry Set combines refined craftsmanship with modern appeal. Its gently contoured grip provides a comfortable, welcoming feel, while the full-length backplate creates a bold, uninterrupted profile that enhances the door’s architectural presence. Engineered as a complete entry solution, the Wilmington Tubular set includes all necessary installation hardware and pairs seamlessly with any EMTEK knob or lever for interior trim. Available in a curated selection of distinguished finishes, this entry set delivers lasting quality, versatile style, and a confident, polished statement at any front entryway.

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

Fits standard door thickness of 1-3/4”; specify if thicker.

BOTH backsets included: 2-3/8" & 2-3/4"

EMPowered™ 2

The "EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™2 fits door thickness up to 2¼”.

Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever used on inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.

Dimensions

Exterior Dimensions

  • Overall Height: 19-1/4"
  • Overall Width: 2-7/8”
  • Deadbolt Height: 2-3/8"

Interior Dimensions

  • Height: 9-3/4"
  • Width: 2-7/8"
  • Thumbprint Height (form top): 2-3/8"
  • Knob Lever Height (from bottom): 2-1/8"

Additional Dimensions

  • Exterior Projection: 2-¾"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1”
  • Clearance between door and grips: 1-7/16”
  • Plate Thickness: ½"



Same Dimensions for the Single Cylinder , Double Cylinder and Dummy Function



Standard Components for Single Cylinder:

  • Standard Door Thickness: 1-3⁄4”- 2-1⁄8”
  • 1-1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  • Deadbolt Strike Plate

Standard Components for Double Cylinder:

  • Standard Door Thickness: 1-3⁄4”- 2”
  • 1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Please specify Extended Door Thickness
