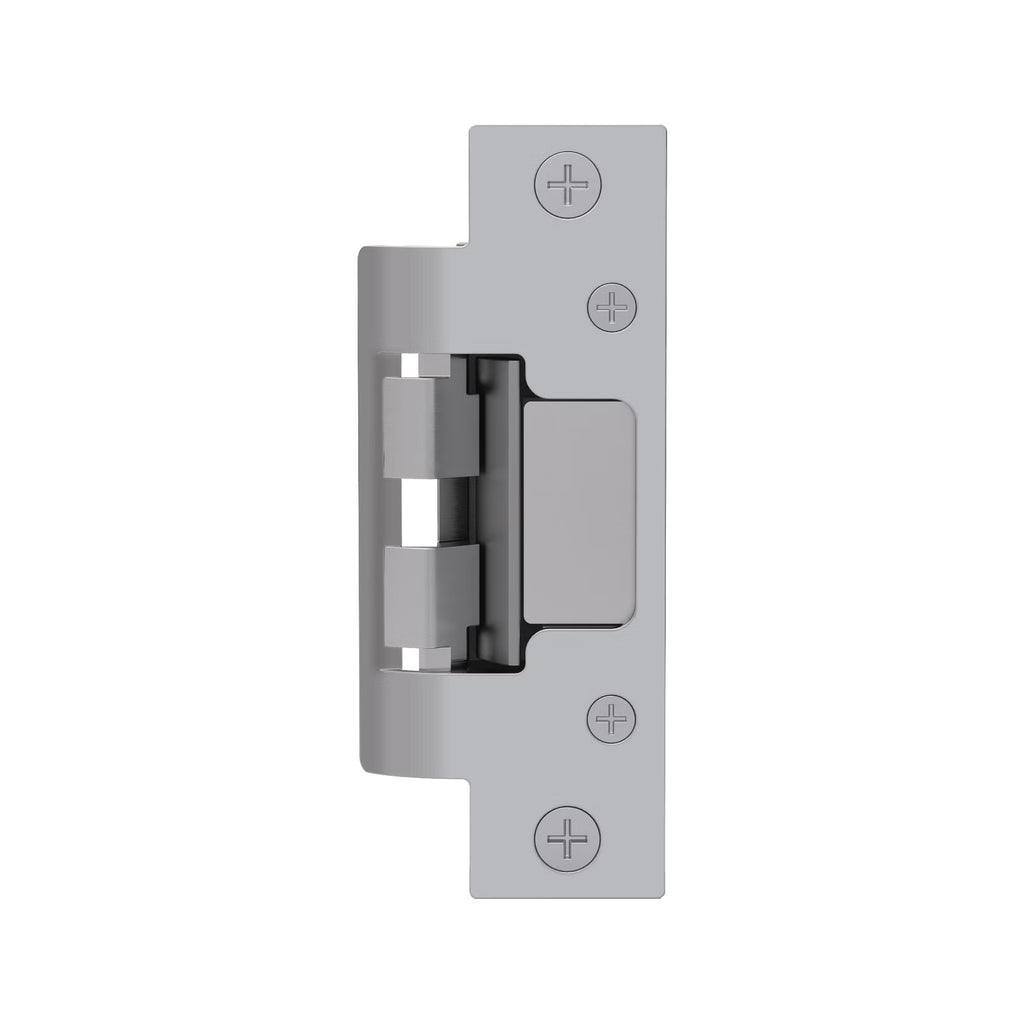

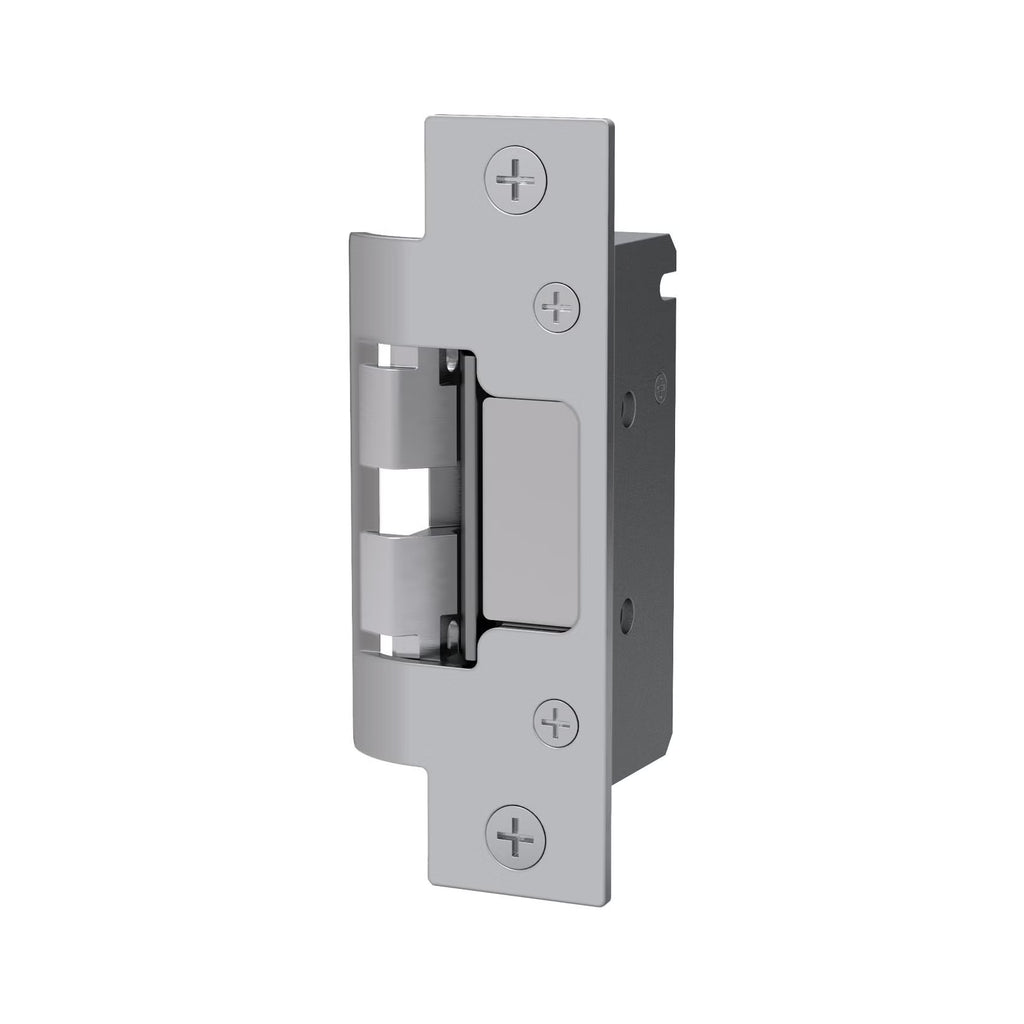

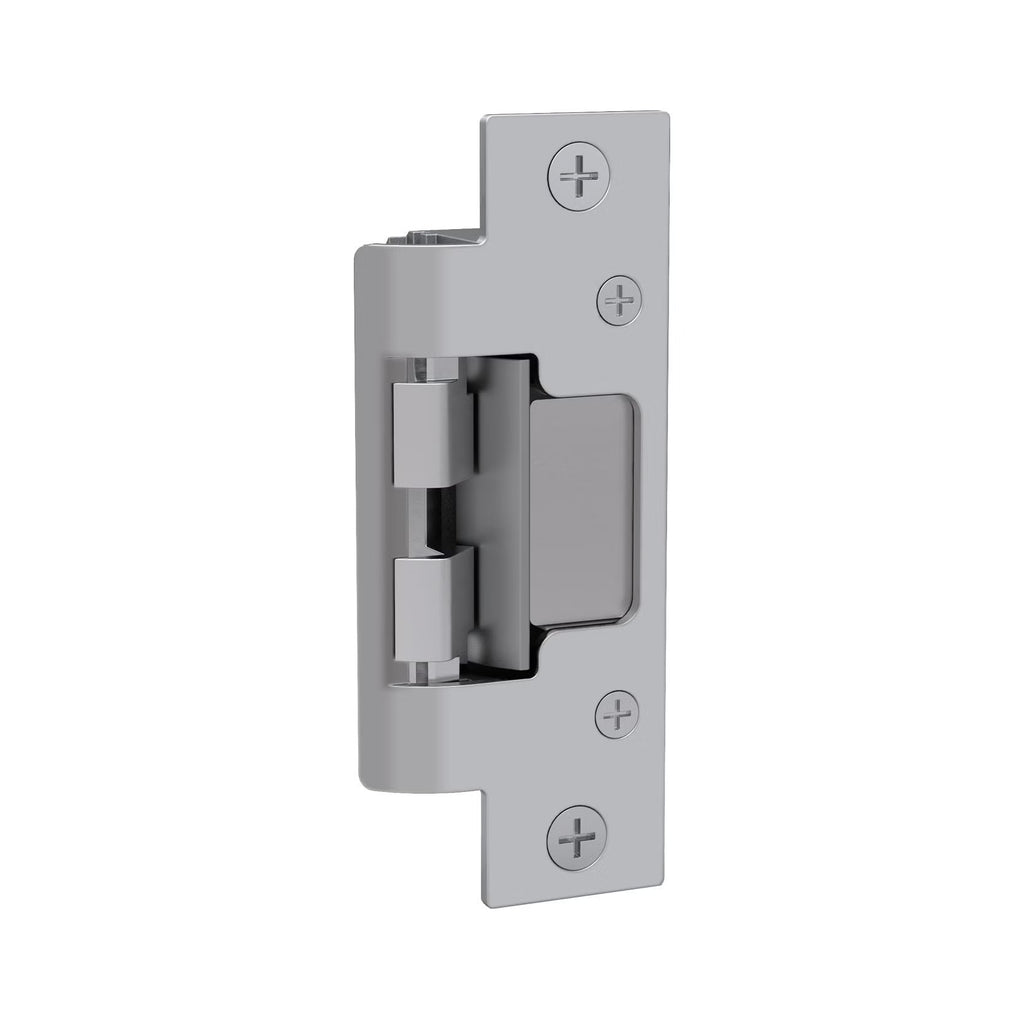

The compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets

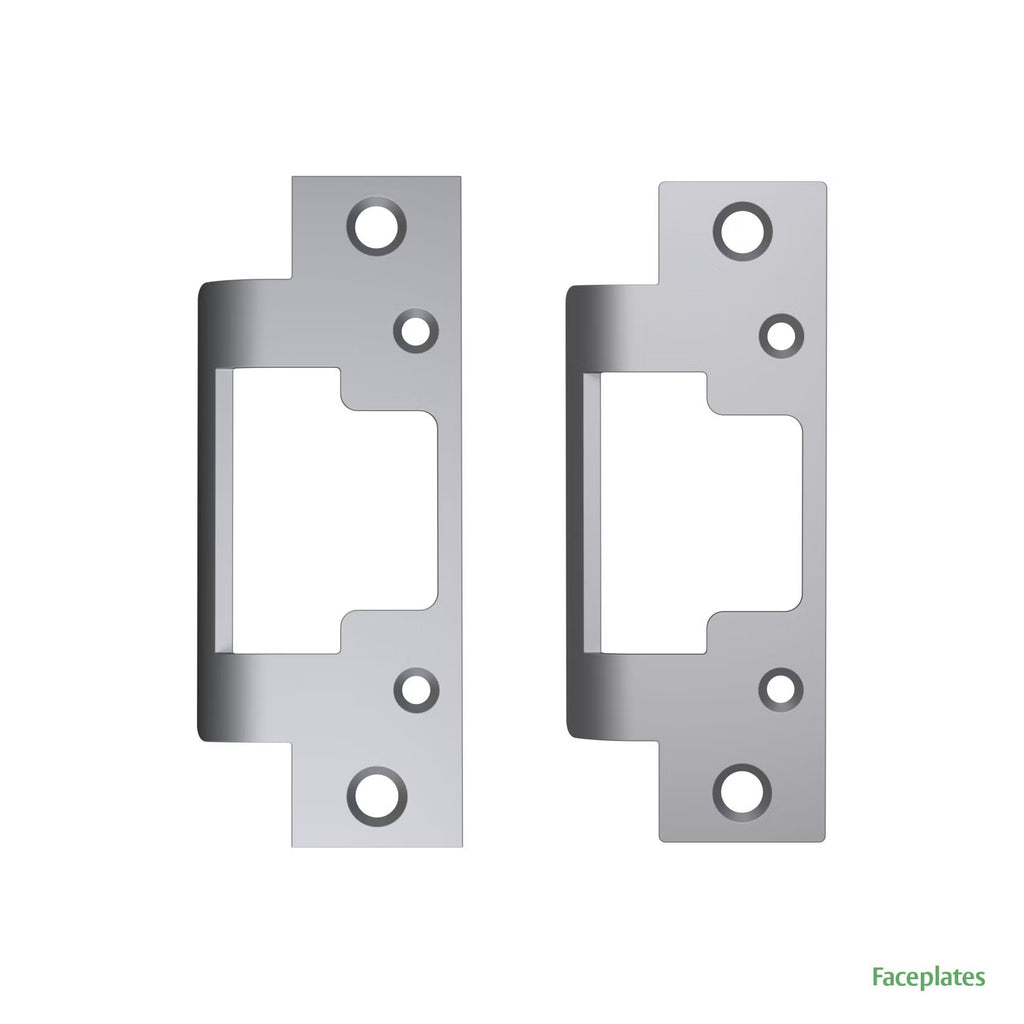

801 faceplates (for use with Cylindrical locksets in ANSI metal jambs, with latchbolts up to 5/8" throw.)

801A faceplates (for use with Cylindrical locksets with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames.)

COLOR: Satin stainless steel (630)

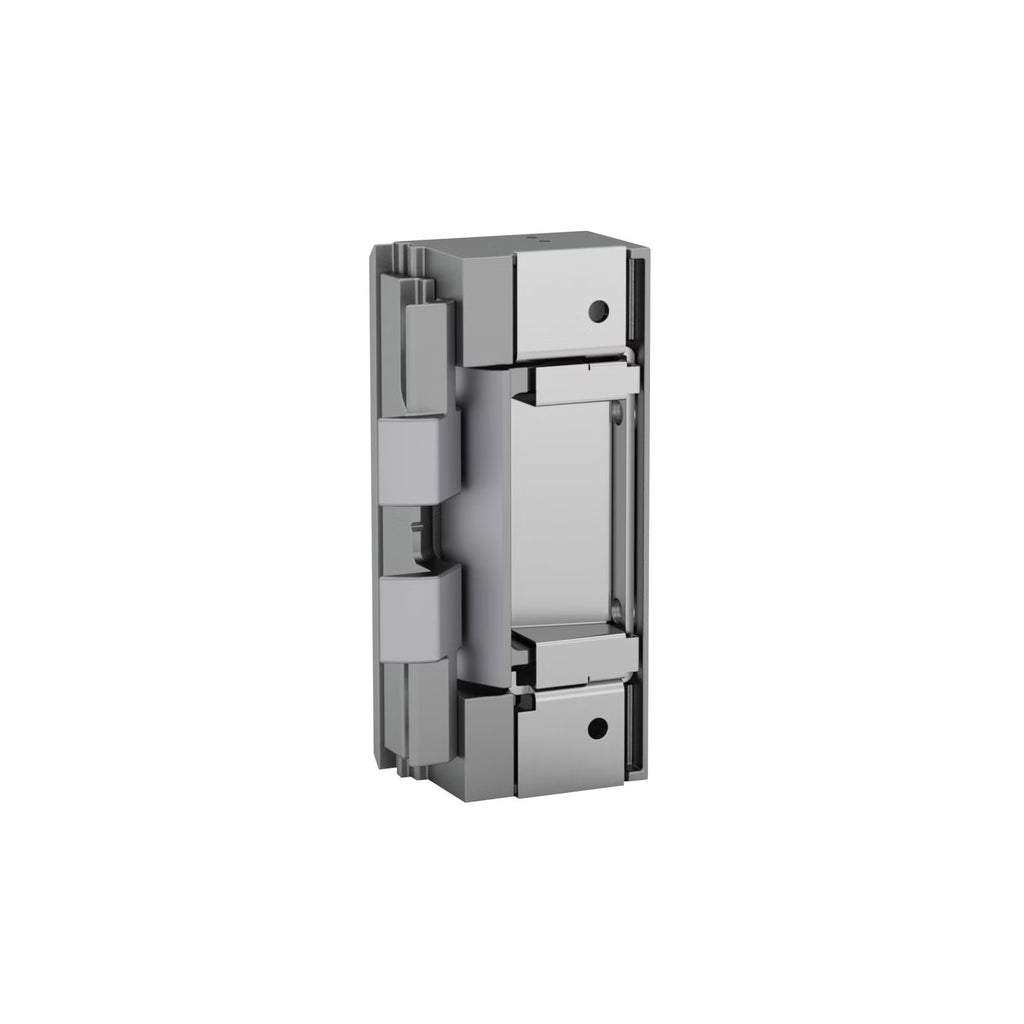

The HES 8300 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the 8300 to exceed the ratings of the frame, door and locking hardware. This unique electric strike is easy to install and complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8300 accommodates latchbolts up to 5/8" throw.
